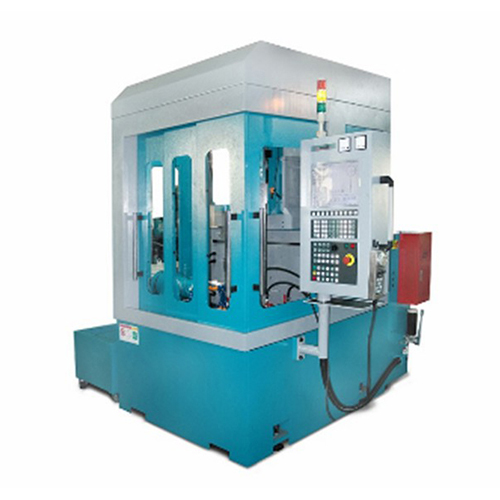

CNC Disk Eroding machine for PCD tools EM-400

Brand: Jeffer Machinery
Price: N/A
Min quantity:
Deliver: In 3 days
Area: Taiwan Taichung City
Expiry: Long-term
Edit time: 2024-02-23 09:04
Hits: 828
Technical spec-
close loop cnc servo controlled axes
X axis travel 400mm with linear scale feedback
Y axis travel 300mm with linear scale feedback
Z axis travel 300mm with linear scale feedback
C axis for tool index 0~360 deg
A axis for electrode angle -120 ~120 deg
Rotary electrode
Outer diameter max- 125mm
Thickness (worn) min- 10mm
Bore diameter 60mm and 32mm
Rotary electrode spindle
Rotational speed 10 ~1000rpm
Dielectric pump delivery rate 50 l/min
Dielectric tank capacity approx- 100 l
Connected load 5-0kVA
Dimensions 2540mm x 2090mm x 2400mm
Weight approx- 3800kgs

-Automatic electrode trimming and compensate-
-Five axes cnc servo controlled with high precision reliability-
-Automatic touch probe for profile detection-
-Super fine erosion circuit up to 0-2u Ra roughness-
-Automatic saw blades top tip edge detect function-
-Erosion oscillation mode for better surface finish-
-Automatic extinguisher for safety consideration-
Pre-milling cutter
PCD Saw blade outer diameter
PCD side
Trimming cutter
Profile Spark
