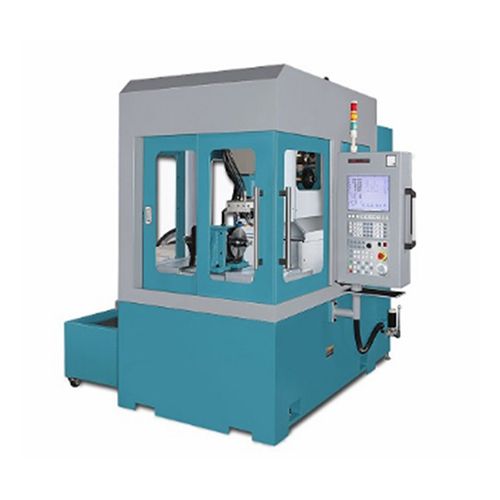

Wire Eroding machine EW-70


Brand: Jeffer Machinery
Price: N/A
Min quantity:
Quantity:
Deliver: In 3 days
Area: Taiwan Taichung City
Expiry: Long-term
Edit time: 2019-10-09 17:42
Hits: 117

Company
Detail

Technical spec-
-close loop CNC servo controlled axes
X axis 400mm travel with linear scale feedback
Y axis 300mm travel with linear scale feedback
Z axis 200mm travel with linear scale feedback
C axis for tool index 0~360 deg
A axis for electrode angle -120 ~ 120 deg
-Tool dimension
Outer diameter max- 350mm
-Machinery
Dielectric pump delivery rate 50 l/min
Dielectric tank capacity approx- 100 l
Connected load 5-0 Kva
Dimensions 2540 mm x 2090 mm x 2400 mm
Weight approx- 4000 kg

FUNCTIONS
-Five simultaneous cnc path control with linear scale feedback-
-Direct Drive Motor (DD MOTOR) controlled C axis and E axis with no backlash-
-Automatic touch probe for tool profile detection-
-Super fine erosion circuit up to 0-2u Ra roughness-
-High rigidity machinery design-
-Automatic extinguisher for safety consideration-
