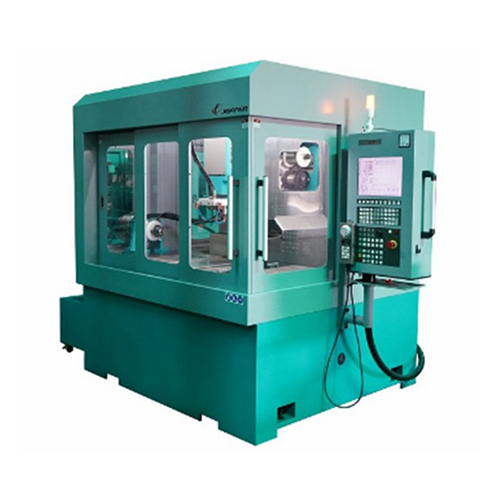

CNC Wire Eroding machine for PCD Tool EW-90
 Enlarge image
Brand: Jeffer Machinery
Price: Negotiable
Min.Order: N/A
Supply Amount: N/A
Delivery: Shipment within 3 days since the date of payment
Place of origin: Taiwan Taichung City
Valid until: Never Expire
Updated on: 2019-10-09 17:42
Area: Taiwan Taichung City
Enquiry

Details

Technical spec-
-close loop CNC servo controlled axes
X axis 700mm travel
Y axis 300mm travel
Z axis 200mm travel
C axis 0~360 deg
A axis 180 deg
-Tool dimension
SK50 tool holder
Maximum tool length 500mm
Maximum tool diameter 320mm
-Manual Adjustable tail stock
MT1 Morse taper dead center
-Filter system
Dielectric pump delivery rate 60L/min
Dielectric tank capacity approx- 140 l
Power requirement
Connected load 5-0 kVA
-Dimension
Dimension 3139 mm x 2206 mm x2200 mm
Weight 4400 kgs

FUNCTIONS
-Five axes cnc servo controlled with high precision reliability.
-3 Axes AC SERVO drive and 2 Axes DD SERVO MOTOR DRIVE.
-Automatic touch probe for profile detection.
-Super fine erosion circuit up to 0-2u Ra roughness.
-High rigidity machinery structure.
-Automatic extinguisher for safety consideration.
-Horizontal Wire Guide with Rotary Head.
