Video & Data Routing
|
A point of control to route up to 4 video, image or data items to 7 destinations. This set up can incorporate 4 HD monitors and another 3 devices (e.g. a recording device, medical printer or a computer in a remote location).
|
|
Video Input from Any Equipment Source
|
VIDA Vision is vendor neutral and accepts industry-signal inputs from any source type. Input signals are converted to DVI for all-digital routing.
|
|
Communication
|
Connects VIDA Vision with our IP/Ethernet streaming device to transmit video/audio inside the O.R. to a computer in a remote location running Internet Explorer (IE) browser.
|
|

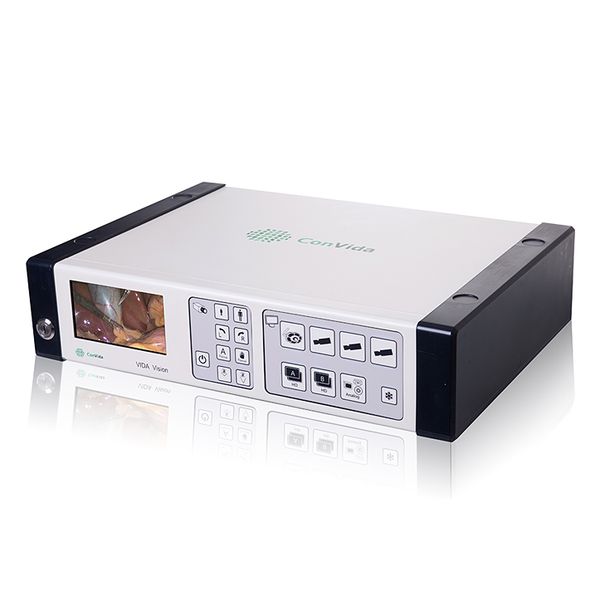

Live Video Preview on Built-in Display
|
A 5" LCD preview display is embedded in VIDA Vision's front panel. Users may view the most current video input before sending.
|
|
Color-coded Buttons
|
Intuitive color-coded control buttons and wall panel facilitate operation and easy identification.
|
|
Uniform Wall Receptacles
|
Uniformed DVI receptacles on the wall make the setup of mobile-based equipment simple. O.R. staff will also enjoy streamlined workflow.
|
|
Control Panel for VIDA HD Camera
|
Includes ON/OFF, Rotate (Right/Left), Auto/Manual Focus, Zoom In/Out, Focus for Near/Far functions.
|
|
Modular Design Enables Future Expansion
|
VIDA Vision is built with serial ports to allow the system to connect with other ConVida integration systems upon or after installation.
|
Specifications
|
VIDA Vision Integration System's base Unit
|
|
|
Power Requirement
|
100 ~ 240Vac, 50 ~ 60Hz
|
|
Width x Height x Depth
|
45 x 11 x 35 cm
(17.72 x 4.22 x 13.78 in.) |
|
Weight
|
6.5 Kg (14.3 Lb)
|
|
Temperature
|
Operating: 10° to 30°C (50° to 86°F),
Storage: -10° to 60°C (14° to 140°F) |
|
Humidity
|
Operating: 20 ~ 75% RH,
Storage: 20 ~ 75% RH |
|
Power Output
|
8 x DC Power (5VDC) for Converters
|
|
Control Interface
|
Front Membrane Keypad or RS-232 Interface
|
|
Video Input
|
1 x YPbPr ; 3 x DVI-D
|
|
Video Output
|
4 x DVI-D (2 Independent, 2 Cloned)
1 x S-Video, 2 x Composite (2 Independent, 2 Cloned) |
