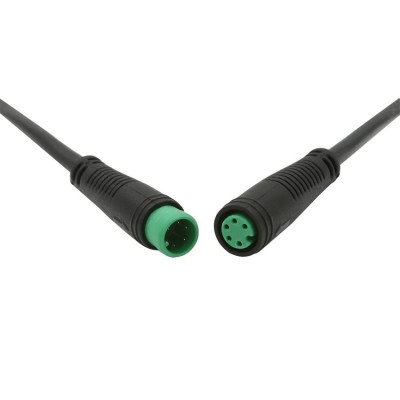

Micro-A 2-6 Pin With SR (2A)

Price: N/A
Delivery: In 3 days
Origin: Taiwan
Expiry: Long-term
Edit time: 2025-05-05 09:44
Hits: 29

Supplier Information
Product Description
Applications: For charging & discharging use, cable to panel solution

Advantages
• Quick lock
• Small and compact
• Poka-yoke design on contact surface
• IP67 robust overmolded type
• Stable connection in vibrating environment
• RoHS and REACH compliant

Specifications



Mating Cycle：100 Cycles

Voltage Rating：48V AC / 60V DC

Operating  Temperature：-25°C to 80°C

Wire Processing：Solder

Current Rating：2A

IP Rating：IP66

Wire Gauge：26AWG / 0.12mm²

Withstand Voltage：500V AC

Salt Spray：5% Nacl, 48H



Insulation Resistance：10MΩ at DC 500V

Flammability Rating：UL94 V-0 (Plastic Material)
