Products for Bike / GDV-11

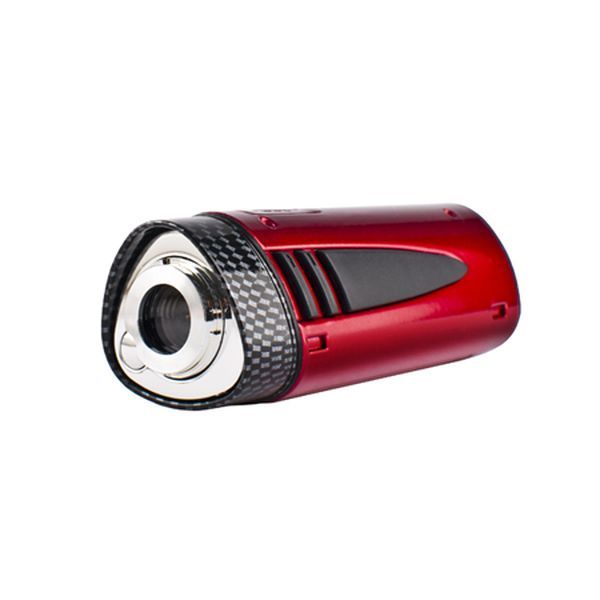

GPS Sport Camera
Model No.: GDV-11
The GDV-11 provides Video recording integrated with GPS features.
It combines GPS and Digital Video functions into a system.
The GPS is recording a point every one second and the camera provide VGA (640 x 480) resolution.
When you ride bicycle with GPS Camera Recorder, it will add GPS position into Video recording files.
According to the Customize API software, the video file that you record will show the routing on the Google Map.
Innovative Sport Digital Video Recorder combined w/ GPS travelling data.
Super Video quality / High resolution up to 640 × 480 (VGA).
Friendly API displaying Video with Speed / Location / Altitude / Time / Distance / Compass.
Auto-link w/ Google MAP to show whole route.
Supporting Multi-language, Time Zone selected and SBAS.
Compact-size Housing mounted easily on the helmet and handle-bar.
Water Resistant / Stylish housing design built in microphone.
Two AAA batteries to be changed easily.
Better Video Compression (XXX.DVI file)
Max up to 32 GB Micro SD.
Warning reminder for Low Battery Power and Full Memory.
Item Specification Remark
Array Element 640x480 (VGA)
Sensor Size 1/4”
Frequency L1, 1575.42MHz
Channels 12 CH for tracking
Image Transfer Rate(Max) VGA, CIF, QCIF, QQCIF －30 fps．
QVGA, QQVGA －60 fps
Antenna GPS Patch Antenna
Protocol GPS output
Electronic Exposure Up to 510:1 (for selected fps)
Power Source AAA x 2 Battery ( Ni-H)
Image Area 3.984 mm×2.952 mm
Dimension 39.6x39.6x102 mm
Weight 50+/- 5g
NOTE: *Specification subject to change without notice
