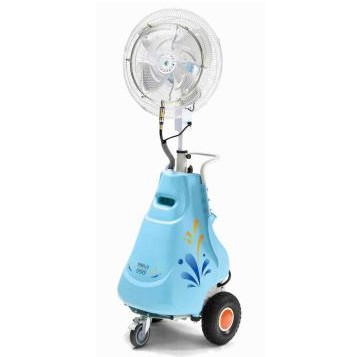

MISTING FAN: WMF-10005-5C (70Bar, 38 Liter)
COOLS & FRESHENS THE AIR!
1.Digital control panel with 24-hour programmable function.
2.Circuit breaker for electrical safety.
3.Strong 18” fan for 200 CBM/min output with 3-speed variable pitch.
4.Adjustable height up to 185 cm.
5.38 liter tank for continuous misting.
6.Tri-filter system: Filters at the tank, mist line and nozzles.
7.Wheel lock for greater safety and stability.
8.Hose connector inlet with float valve shutoff to prevent overflowing.
MODEL WMF-10005-5C WMF-10005-6C WMF-10005-6C
Motor 50HZ,Φ1,230V 60HZ,Φ1,110V 60HZ,Φ1,220V
Efficiency of Fan
(CBM/min；3 Switch) 160 / 174 / 192 165 / 180 / 200 165 / 180 / 200
Power Consumption 270W (125W pump, 145W Fan)
Working Pressure(kgf/cm2) 70 (1000psi)
Output(L/min) 0.28 (6 Nozzles)
Tank(Liter) 38
Dimension(WxLxH/cm) 53X53X170~190
Weight(kgs) 40
Packaging(WxLxH/cm) 88X56X112
Minimum Order machine size Minimum Order machine size
