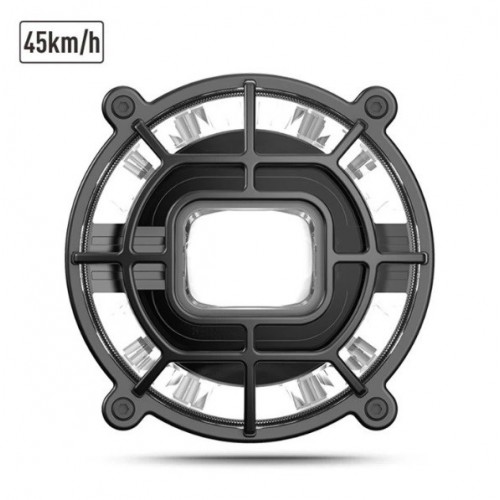

Model:QD472
Inquiry
Description：
MINI model, fully plastic housing, using a condensing lens light distribution scheme, optimized lighting driver system with a clear bright/dark boundary, which creating a wider light field within the close range of illumination. The illumination from the center of the light spot at a distance of 10 meters reaches above 80 Lux.
Specification：
Approval ECE Class B / CE
Size L145.1mm W98.3mm H145.1mm
Weight 173.5g
Wiring 4 Pins
Waterproof IPX5
Voltage 12V / 36-48V / 72V
Center Luminance Low beam:100LUX ; High beam:230LUX
Light Source LED
Horn Decibel 85±5dB
Horn Voltage 36-48V
Power 12V:Day light 11W;Low beam 8.5W;High beam 8.5W
