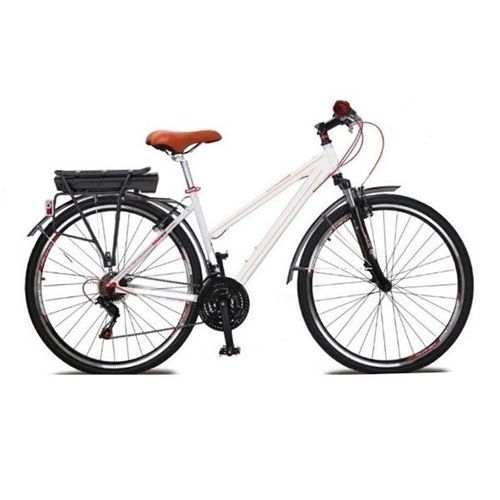

E-LADY SPEED - 700c low step frame Lady's E Trekking


Brand: AiBIKE
Model Name: CY-ELS2821PW
Price: 799.00 USD/set
Min quantity: 50 set
Quantity: 650 set
Deliver: In 60 days
Area: Taiwan Taichung City
Expiry: Long-term
Edit time: 2017-09-29 10:43
Hits: 701

Company
Detail

E-LADY SPEED - 700c low step frame Lady's E Trekking


Model Name: CY-ELS2821PW

- bicycle -

FRAME: 700c al-alloy
FORK: Alloy 700 C
H/BAR: Steel 620/25.4mm
H/STEM: Alloy L=90mm, threadless, non-adjustable a-head
H/Set: 28.5*34*30, H:28, threadless
GRIPS: L/R: 22.2*125mm
PEDALS: Wellgo alloy, black, w/refs.
SADDLE: DDK Vintage
SEATPOST: Steel, S/clamp-pin: dia 31.8mmm, QR
F/R HUB: Alloy, 36 h, QR
SPOKES: 14G stainless with brass nipples
C/WHEEL: Black, 48/38/28,crank alloy 170mm
F/DERA.: FD-TZ31 Shimano
R/DERA.: RD-TZ50 Shimano
GRIP SHIFTER: RS-35 Shimano 21 SPD
F/WHEEL: Shimano 14-28T
F&R/BRAKE: V-brake alloy
TYRES: 700x40C
RIM: 28"alloy double wall,36H,black CNC
MUDGUARD: F/R Steel silver w/stay
KICK STAND: Al-alloy black

- E-kit -

MOTOR: ERM-G07RD(36V250W)

BATTERY W/RACK: KL36H94 36V9Ah (Panasonic cell), charger included

CONTROLLER: ERC-L50F(36V Sine-Wave)

PEDAL RPM SENSOR: ERS-PS12L

BRAKE LEVER: alloy H-304PAN

CRUISING ENDURANCE: 40 / 70 km after batt. fully charged

LCD DISPLAY: ERD-C203 36V
