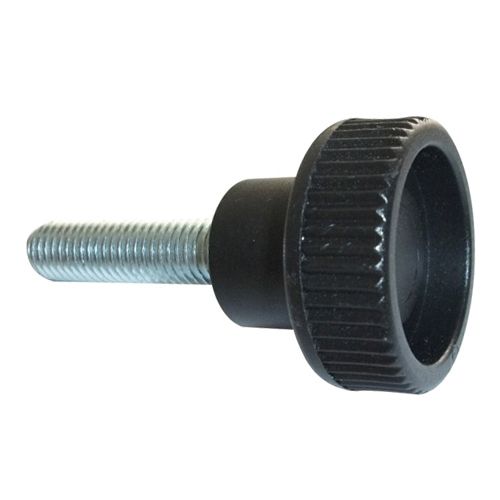

Knurled Nuts - 8010 Knurled Thumb Screws


Price: N/A
Min quantity:
Quantity:
Deliver: In 30 days
Area: Taiwan Taichung City
Expiry: Long-term
Edit time: 2017-03-10 16:46
Hits: 91

Company
Detail
Name    Material  Surfaced process
Knob   Plastic (KT)       Black (BK)
Spindle     steel (ST)      Zinced (ZI)

Order No.
(KT)                           A    B       C        D E F
8010-A-B-C
                                  20 M4  10 15 20       13.5  8 12
*A(Knob diameter)     20 M5  10 15 20       13.5  8 12
                                  25 M6  10 20 30       19.5  9 15
B(External thread)     30 M8  20 30 40       21.5 11 18
                                  35 M10  20 30 40        28 13 21
C(Thread length)
