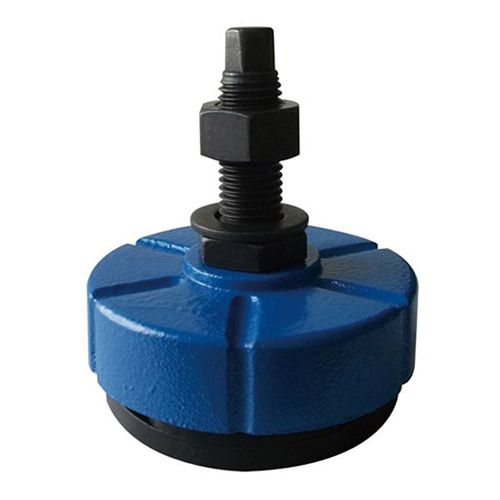

Clamping Accessories - 9171 Aseismatic Seats


Price: N/A
Min quantity:
Quantity:
Deliver: In 30 days
Area: Taiwan Taichung City
Expiry: Long-term
Edit time: 2017-03-10 16:46
Hits: 276

Company
Detail
Name                 Material           Surfaced process
Seat                       Steel (ST)           Painted blue (BL)
Screw               Steel (ST)                      Black (BK)
Skidproof               Rubber                      Black (BK)

Order No.
(ST)                                   A     B          C D E Loading (kg)
9171-100-M20-75        100   M20 40 44 10 1000
        -100-M20-110         100   M20 77 44 10 1000
        -100-M20-150         100   M20 117 44 10 1000
        -100-M20-200         100   M20 167 44 10 1000
        -100-M20-240         100   M20 207 44 10 1000
        -150-M20-75        150   M20 40 54 10 1500
        -150-M20-110         150   M20 77 54 10 1500
        -150-M20-150         150   M20 117 54 10 1500
        -150-M20-200         150   M20 167 54 10 1500
        -150-M20-240         150   M20 207 54 10 1500
