Specialist in a Wide Array of Circular Sawing Machines & Cutting Machines
Product ID: C-275 / 1A / 2A / 3A / M

Quick measurement of the size, hand-operated tongs, hand-operated saw feeding and withdrawing; you can control the saw feeding at any time and give the appropriate pressure in accordance with the size of a tube when doing the action of saw feeding; the saw blade can be used for a long time.

Features:

C-275
1.Two-way tongs, without bur when sawing, without powder and dust, with high accuracy.
2.Available sawing angles:Left:90°degress to 0° degree;right:90° degrees to 45° degress.
3.The front setting water box design of the cooling system is convenient and easy to clean up.
4.Iron chippings are treated together, convenient and clean.

C-275 Available Rane:
Available for thinner iron tubes,stainless steel tubes,aluminum tubes,and copper tubes and copper bars.
Available for the use or the sample developing of door and window proprietors,and available for proprietors of lighter tubes.

C-275 Features of Hand-operated Tongs and Saw Feeding:
Quick measurement of the size,hand-operated tongs,hand-operated saw feeding and withdrawing;you can control the saw feeding at any time and give the appropriate pressure in accordance with the size of a tube when doing the action of saw feeding;the saw blade can be used for a long time.

C-275-1A Features of Automatic Tongs Hand-operated Saw Feeding:
Besides the features of C-275,the automatic clamping function is another feature.When finishing measuring a tube's length,you can press down the swith,and the tube will be clamped tight immediately,which is able to avoid the danger of saw feeding without being clamped tightly.

C-275-2A Features of Automatic Tongs Automatic Saw Feeding and Withdrawing
The model is most appropriate for huge amout.When finishing adjusting the saw blade and a tube's lengh,you can press down the pedal switch,and it will execute the functions of clamping and saw feeding,which will save the production time.

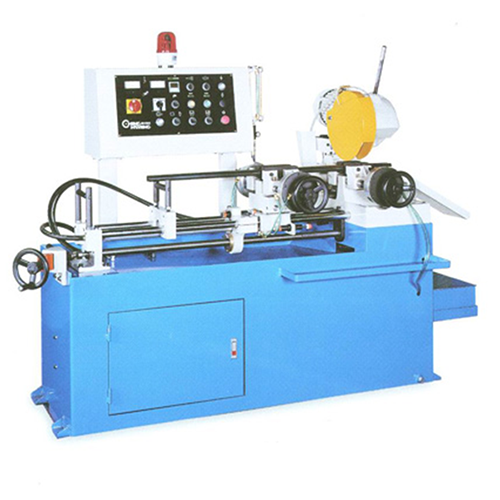

C-275-3A Feature of Automatic Tongs,Automatic Saw Feeding and Withdrawing,Feed,and Positioning:
Using the PLC controller,control buttons are located together,allowing for simple operation,agile,easy to maintain.
Uniquely designed,most suited for floating feed system,accurate and rapid feeding does not damage workpiece surfaces.
Equipped with digital display for easy cutting length adjustment,quick and accurate.
The tong's pressure is adjustable at will,ensuring that the tubes will not deform and be damaged.
Equipped with electronic-type saw blade protection device,the machine will stop automatically after the saw blade is blunt.
Equipped with the counting device that can set the amount and the function of machine stopping.
The automatic non-material machine stopping device.
Iron chippings are treated together,convenient and clean.
