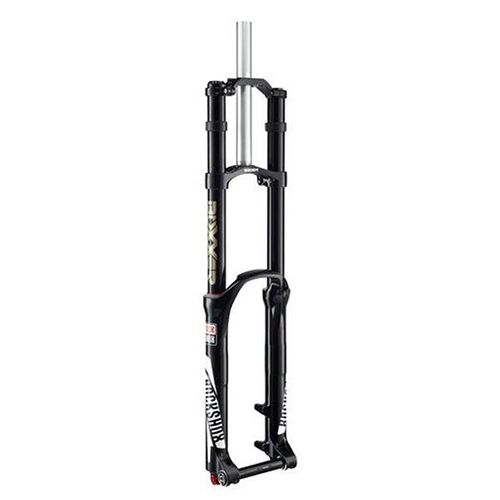

For nearly two decades, BoXXer has been piloted to the top step of the podium at downhill World Cup races and freeride events more than any other fork. With such a legacy, it’s no doubt the new BoXXer has already proven itself with Steve Smith’s World Cup overall victory and Kyle Strait’s Rampage win in 2013. The new BoXXer features the new Charger Damper™, new air and coil spring systems, Rapid Recovery™ rebound, Fast Black stanchions and 27.5” options. And guess what: the lightest production downhill fork on the market is getting a whole lot lighter.
MSRP* (Includes tall and short crowns)
Euro MSRP includes VAT
Some variations of this product featured on this page are not available for purchase and are installed on bicycles as original equipment only. See your dealer for details.
*Maximum Suggested Retail Price
Specifications for BoXXer Team
WHEELS 26'', 27.5''
AXLE TO CROWN 568mm - 26'', 581mm - 27.5''
WEIGHT 2890g - 26” , 2942g - 27.5”
DAMPING Charger Damper
AVAILABLE SPRINGS Coil
ADJUSTMENTS External beginning stroke rebound, low speed compression
STEERER OPTIONS Aluminum 1-1/8''
CROWN Forged 6061 T-6 aluminum, direct mount stem compatible
UPPER TUBES 35mm aluminum, Fast Black
LOWERS Magnesium, 20x110mm Maxle Lite DH
RECOMMENDED REAR SHOCK Vivid, Vivid Air
MAXIMUM ROTOR SIZE 210mm
COLOR OPTIONS Black, Diffusion Black, White
OTHER 200mm minimum rotor size on 27.5'' version
RETAIL AVAILABILITY June 2014
