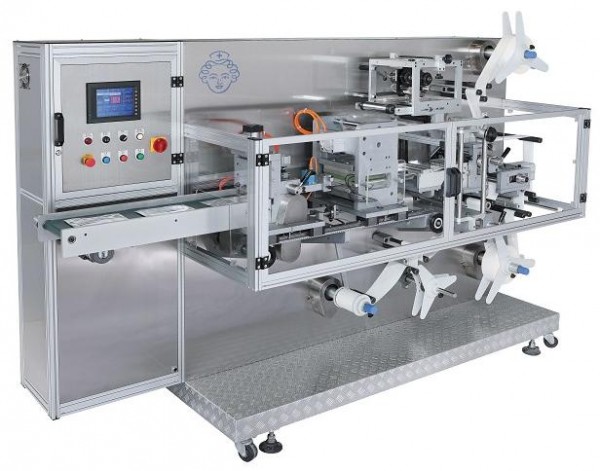

PLASTER PERFORATING MAKING & PACKING MACHINE DC-308-01


Price: N/A
Min quantity:
Quantity:
Deliver: In days
Area: Taiwan Taipei City
Expiry: Long-term
Edit time: 2024-04-10 16:00
Hits: 1360

Company
Detail
PLASTER SIZE:60X100~120X180(MM)
PACKING SIZE:95X140~160X225(MM)
PACKING CAPACITY:1~5(PCS/PACK)
(ONE PRODUCT SIZE ONLY FOR ONE MACHINE, EXTRA SIZE OPTIONAL.)
MAX. SPEED: 100(PCS/MIN)
(ACCORDING TO THE MATERIAL USED)
MOTOR:1HPX5,1/2HPX2,3HPX1
HUMAN MACHINE INTERFACE: 7.7"
HEATER:1.2(KW)
DIMENSIONS:300LX130WX200H(CM)

Features of Machine Model: DC-308-01

   1. Tension of material controlled by LOADCELL.
   2. A number of servo motors on the machine are precisely synchronized for revolving.
   3. HMI (Human Machine Interface) and touch panel makes positioning of product much easier.
   4. Perforating and cutting, etc. are done by cutting roller.
   5. Plaster stacking up for packing can be done automatically without having to be finished manually.
   6. Positioned cutting can be done by detecting the printing mark on packing paper sensed by photoelectric.
   7. Machine will automatically stop as soon as running out of material is detected by auto sensor.
   8. Machine designed in upright position to facilitate operating the machine for production. And it is easy to change for making different specification of products including doing regular maintenance.
