MAX.WIDH OF MATERIAL:580(MM)
LENGTH OF PRODUCT:70X150(MM)
SLITTING CAPACITY:1~10(PCS)
SPEED:1~15(M/MIN)
MOTOR:3HPX1
DIMENSIONS:340LX160WX170H(CM)

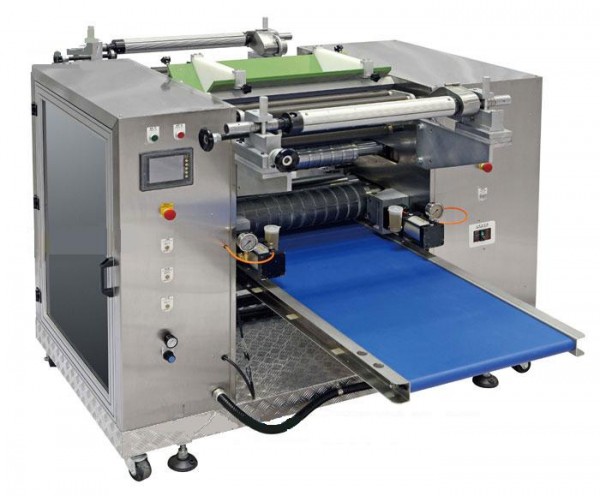

Features of Machine Model: DC-303G
1. Tension of material controlled by LOADCELL.
2. A number of servo motors on the machine are precisely synchronized for revolving.
3. HMI (Human Machine Interface) and touch panel adopted on this machine make positioning of product much easier.
4. Ensuring precise thickness of coating and easy to adjust.
5. Shaping and cutting, etc. are done by cutting roller.
6. Machine designed in horizontal position to facilitate the operation for production. And it is easy to change for making different specification of products and also very easy to do regular maintenance.
