MAX. WIDTH OF MATERIAL :120(MM)
LENGTH OF PRODUCT:40~1000(MM)
SPEED:36(M/MIN) or 360(PCS/MIN)
MOTOR:1HPX2 , 1/2HPX1
DIMENSIONS:220LX100WX190H(CM)

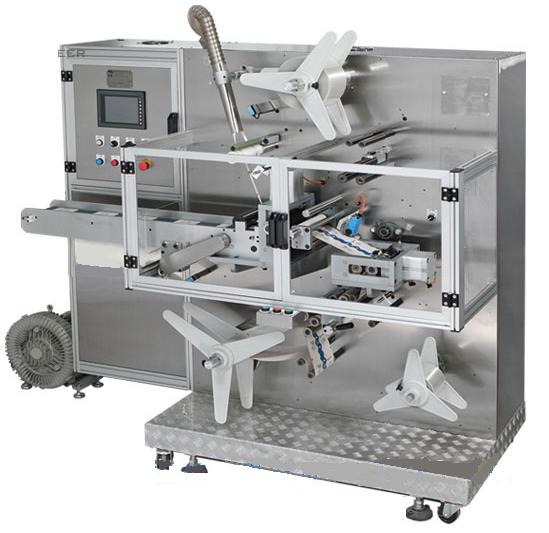

Features of Machine Model: DC-318RC
1. Tension of material can be controlled automatically and done mechanically.
2. A number of servo motors on the machine are precisely synchronized for revolving.
3. Setup of cutting any length within 1 M can be done on touch panel.
4. Perforating and cutting are done by cutting roller.
5. Machine will automatically stop as soon as running out of material is detected by auto sensor.
6. Machine designed in upright position to facilitate the operating for production. And it is easy to change for making different specification of products and also very easy to do regular maintenance.
