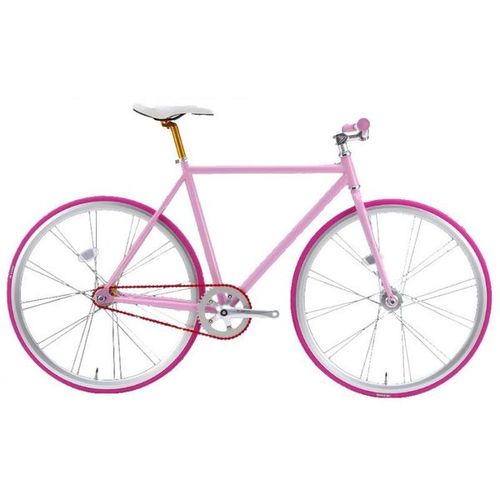

PC-70023C road bike
Road bike
Specification
| frame | HI-TEN 700C*520mm H/T:38*34*120mm T/T28.6 D/T31.8 S/T29.8 S/S16 CS22.2 H/T 120MM, W/PIVOTS, TIG |
| Front Fork | HI-TEN 700C Steel 25.4*28.6* 200MM middle tube H/T: 100MM |
| Head Parts | 711 8PCS/BK/2861BK/OEM 1-1/8"x34x30 |
| Washer | 28.6*10MM |
| B.B.Parts | Cartridge,BC1.37*24T 68* 110.5MM |
| Seat Clamp | 29.8MM Aluminum |
| Front Brake | Aluminum, Brake C,39-49MM |
| Rear Brake | Aluminum, Brake C,39-49MM |
| Brake Lever | Aluminum 2 fingers black seat aluminum post adjust slightly with clamp 22.2 |
| Front Hub | 3/8"*100*140,32H/14G,Flange to Flange: Sealed Bearing(SB): |
| Rear Hub | 3/8"*100*140,32H/14G,Flange to Flange: Sealed Bearing(SB): Single Speed with 16T fixed freewheel |
| Rims | Aluminum,700C, 14GX32H, 2 holes in one set, A/V, H:41mm |
| Spokes | 14G, stainless steel,16MM copper head |
| Freewheel | 1/2*1/8*17T |
| Outer Tyre | 700C*23C,Rubber, withF/V inner tyre/rubber rim-strip |
| Handlebar | Aluminum, W:330mm Straight Handlebar |
| Stem | Aluminum, Dia:28.6MM,EXT:100mm, H:41mm, |
| Grip | L:130mm single straight rubber |
| Chainwheel & Crank | 1/2"*3/32"* 44T, |
| Chain | 1/2"X1/8"X 98L, |
| Saddle | pvc |
| Seat Post | Aluminum,27.2×300MM with clamp |
| Pedal | platform cr-mo 112*102.4*28.4mm |
