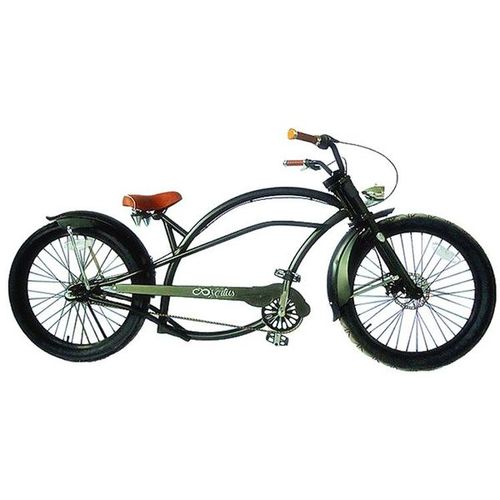

24" Chopper Bike
* Shimano Nexus 3 speed with coaster
* Front disc brakes
* With fender & chain cover







1. Specifications

24" CHOPPER BIKE  Shimano Nexus 3 speed with coaster







frame STEEL B/B T/S/D TUBE: 31.8*28.6*31.8MM W:140MM
H/T: 30*120MM, TIG WELDING W/DISC-BRAKE PIVOT
RC: 790 MM
FORK STEEL TIG WELDED W:102MM OD*L:1-1/4" OD:27MM
MTUBE ID*L:25.4 *180MM
FENDER STEEL STEEL,FOR 3.0 TIRES
CHAIN COVER STEEL LonGER TYPE SEEM THE PICTURE
PAINT COMMON FORK,frame
DECAL COMMON CUSTOMER DESIGN
HEAD PARTS STEEL 1"*30*27MM 10PCS W/H2541 ALLOY BLACK TOP CAP
B.B SET STEEL D-TYPE 5PCS
HANDLEBAR STEEL OD:22.2MM W:630MM H: 150MM
STEM ALLOY 25.4*22.2MM EXT:50MM H:30MM
GRIP PVC L:22.2*125MM CLOSE END
CHAINWHEEL STEEL D-TYPE,1/2*1/8*44T*170L*9/16"
CRANK STEEL
FREEWHEEL STEEL 1/2"*1/8"*18T
CHAIN STEEL 1/2"*1/8"*160 linkS
F-BRAKE ALLOY DISC- BRAKE W/DT-160A ROTOR WAVY 160MM
R-BRAKE ALLOY DISC- BRAKE W/DT-160A ROTOR WAVY 160MM
BRAKE LEVER RESIN/ALLOY CLAMP RESIN BLACK BRAKE LEVER ALLOY SILVER
CABLE 2P F: 720*920MM R:1100*1380MM
RIM ALLOY 14G*36H 26"*1.75 A/V
F/HUB STEEL 14G*36H, OD*W*L:3/8*100*140MM FLANGE NUT TYPE
R/HUB STEEL 14G*36H, OD*W*L:3/8*140*175MM FLANGE NUT TYPE
SPOKE STEEL 14G,F/238L R/240L STEEL NIPPLE 45#
TIRE RUBBER 24''*3.0
TUBE

24"*3.0 A/V
TAPE

OB:2420
SADDLE PU LEATHER SEAT W/CLAMP ED W/SPRING ED
SEAT POST STEEL 25.4*250MM*1.4T
SEAT PIN

NIL
PEDAL ALLOY 1/2 '' REFLECTER W/BALL
KICKSTAND

STEEL,REAR TYPE
