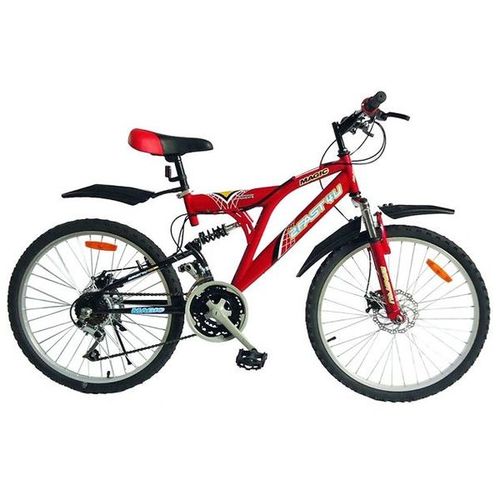

PC-D2418 24 inch Mountain bike
Specification
18-SPEED
| frame | STEEL 24 ARGON WELDING SUSPENSION MTB frame H/T:30*34*120L T/T:31.8*1.2T FILL STRONG:38.1*1.2T D/T:48*1.2T OVAL:64*34MM TAPERED S/T:28.6*1.4T T/S:19*1.2T D/S:22.2*1.2T OVAL:27*17MM SMALL B.B SHELL TOP PULL TYPE SHOCK WIDTH:150L*750LBS,W/PIVOT,AND FOR DISC BRAKE ALSO |
| SHOCK | ALLOY BODY&STEEL YELLOW SPRING 750LBS*150L |
| FRONT FORK | STEEL 24"ARGON WELDING SUSPENSION FORK THE PRESS CROWN SEEM ALLOY TYPE 22.2*25.4*27*152L*31.8LEGS*3/8"*102W WELDING PRESS END,FOR DISC BRAKE |
| HEAD PARTS | STEEL 22.2*27*30*32H 8PCS |
| HANDLE BAR | STEEL STRAIGHT 22.2*580W*1.2T |
| HANDLE STEM | STEEL 22.2*150L*1.4T EXT:100MM TOP TO DOWN TAPERED |
| GRIP | SOFT RUBBER 22.2*85L |
| BRAKE LEVER | RESIN/STEEL 3-FINGER W/ADJUST NUT |
| FRONT BRAKE | DISC BRAKE 160MM |
| REAR BRAKE | DISC BRAKE 140MM |
| BRAKE CABLE | 2P2C F&R |
| F.DERAILLEUR | STEEL 28.6MM BRACKET TOP PULL 3-SPEED NOINDEX |
| R.DERAILLEUR | STEEL W/BRACKET LONG CAGE 6-SPEED NOINDEX |
| SHIFTERLEVER | GRIPSHIFT FRONT 3-SPEED NOINDEX REAR 6-SPEED INDEX W/INNER CABLE |
| SHIFTER CABLE | 2P2C F&R |
| SPOKER DISC | PVC 5*1/2" CLEAR |
| FREEWHEEL | STEEL 1/2"*3/32"*14-28T 6-SPEED NOINDEX |
| CHAINWHEEL | STEEL 1/2"*3/32"*28*38*48T NOINDEX |
| CRANK | RESIN/STEEL 9/16"FOR PEDAL 170L |
| CHAINCOVER | PLASTIC AROUND TYPE W/5-ARM PLASTIC |
| CHAIN | STEEL 1/2"*3/32"*110L |
| PEDAL | RESIN BODY W/BALL W/REFLECTION |
| B.B PARTS | STEEL D-TYPE 3P AXLE 5PCS/1SET |
| SADDLE | PVC TOP ED STEEL CAGE MTB TYPE TWO-TONE |
| SEAT POST | STEEL 25.4*250L*1.4T W/SAFETY LINE |
| SEAT PIN | ALLOY M8*35MM W/QR |
| FRONT HUB | STEEL 3/8"*14G*36H*100W*140L FLANGE NUT W/SAFETY HOOK FOR DISC |
| REAR HUB | STEEL 3/8"*14G*36H*128W*170L FLANGE NUT SINGLE WHORL FOR DISC |
| SPOKE | STEEL 14G F:264MM R:262/264MM STEEL NIPPLE |
| RIMS | ALLOY 24"*1.5"*14G*36H 1.6T |
| TIRE | RUBBER 24"*1.95" INNER TUBE A/V W/OB MTB TYPE |
| KICK STAND | STEEL 24"REAR TYPE W/LOCK |
| REFLECTION | F:WHITE*1PCS R:RED*1PCS WHEEL:YELLOW*2PCS |
| BRACKETS | REFLECTION BRACKET RESIN F/R |
| FENDER | PLASTIC F/R SEEM THE PICTURES |
