HIWIN synchronous linear motors LMS are the power packs oflinear drives.
They are especially distinguished by very high power density and minimum cogging force.

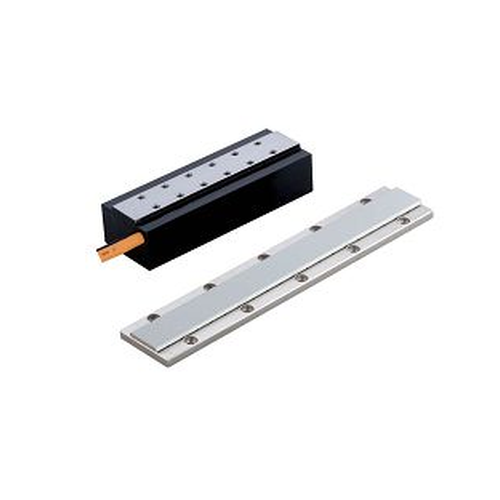

The three-phase motors are composed of a primary part (forcer) with a coiled stack of sheets and a secondary part with permanent magnets (stators). With the combination of several stators, many stroke combinations are possible.
