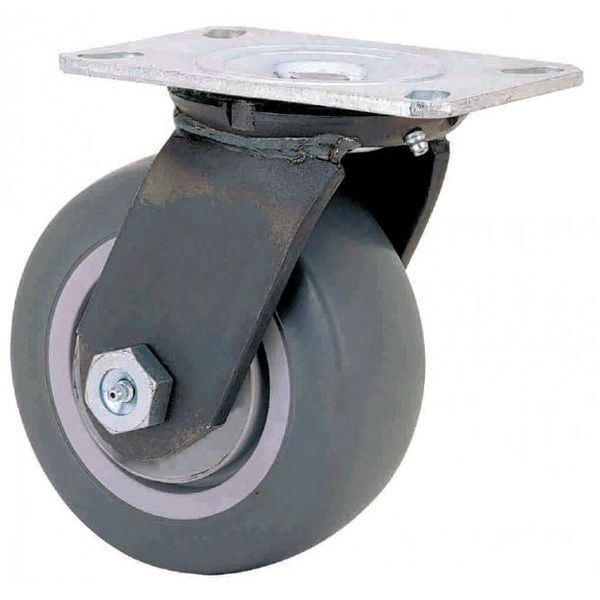

| HEAVY DUTY COLD FORGED CASTERS | |||
| CAPACITIES TO 1,800# | |||
| STANDARD FEATURES | |||
| HEAVY DUTY COLD FORGED TOP PLATE AND YOKE base | |||
| BRIGHT ZINC PLATED | |||
| LARGE DIAMETER DOUBLE BALL BEARING | |||
| RACEWAY AND TOP PLATES, 3/8" THICK, HEAT | |||
| TREATED FOR LONG WEAR AND ADDED STRENGTH | |||
| 3/8" THICK DOUBLE WELDED LEGS | |||
| 3/4" DIAMETER HEAT TREATED KING PIN AND NUT | |||
| 3/4" AXLE BOLT AND LOCK NUT | |||
| HARDENED AND GROUND SPANNER BUSHING WITH | |||
| HOLE AND GREASE GROOVE | |||
| GREASE FITTING IN YOKE base AND WHEEL | |||
| APPLICATIONS | |||
| HEAVY DUTY PLATFORM TRUCKS | |||
| WELDING FIXTURE TABLES | |||
| POWER DRAWN EQUIPMENT | |||
| TOW LINE CARTS | |||
| WELDING FIXTURE TABLES | |||
| HEAVY DUTY PRODUCTION FIXTURES | |||
| STEEL HANDLING CARTS | |||
| TOP PLATE DIMENSION AND BOLT HOLE PATTERNFINISH OPTIONS | |||
| 4-1/2x6-1/4 TOP PLATE | |||
| BOLT HOLE PATTERN SLOTTED | |||
| 2-7/16x4-15/16 TO 3-3/8x5-1/4 | |||
| ATTACHING BOLT SIZE 1/2 | |||
| OPTIONS | |||
| 4 POSITION SWIVEL LOCK (WSL) , (BSL) | |||
| NEOPRENE GREASE SEALS | |||
| SEALED PRECISION BALL BEARINGS or TAPERED | |||
| ROLLER BEARINGS (ConTACT FACTORY) | |||
| WHEEL FACE ConTACT BRAKE | |||
| SLB-SIDE LOCK BRAKE | |||
| FCB-FACE ConTACT BRAKE | |||
| BEARING OPTIONS | |||
| R-ROLLER BEARING | |||
| D-DELRIN | |||
| P-PRECISION | |||
| B-BALL BEARING | |||
| S-SLEEVE or PLAIN BEARING | |||
| T-TAPERED BEARING | |||
| Diameter | Width | Wheel Material | Capacity(lbs.) | Load Height | Swivel Number | Swivel Weight | Rigid Number |
Rigid Weight |
Bearing Type |
| 5 | 2-1/2 | POLYURETHANE/STEEL | 1300 | 6-1/2 | -55S525-PUR | 16.00 | -55R525-PUR | 14.00 | ROLLER |
| SEMI STEEL | 1500 | -55S525-SSR | 14.00 | -55R525-SSR | 12.00 | ROLLER | |||
| DUCTILE STEEL | 1800 | -55S525-DSR | 16.80 | -55R525-DSR | 14.50 | ROLLER | |||
| 6 | 2-1/2 | RUBBER ON STEEL | 700 | 7-1/2 | -55S625-RSR | 12.50 | -55R625-RSR | 11.00 | ROLLER |
| RUBBER ON STEEL | 700 | -55S625-RST | 13.50 | -55R625-RST | 12.00 | TAPERED BEARING | |||
| POLYURETHANE/STEEL | 1600 | -55S625-PUR | 13.25 | -55R625-PUR | 11.75 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1600 | -55S625-EZPUR | 15.00 | -55R625-EZPUR | 13.50 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1600 | -55S625-EZPUT | 15.00 | -55R625-EZPURT | 13.50 | TAPERED BEARING | |||
| SEMI STEEL | 1800 | -55S625-SSR | 12.50 | -55R625-SSR | 11.00 | ROLLER | |||
| DUCTILE STEEL | 1800 | -55S625-DSR | 14.50 | -55R625-DSR | 13.00 | ROLLER | |||
| DUCTILE STEEL | 1800 | -55S625-DST | 14.50 | -55R625-DST | 13.00 | TAPERED BEARING | |||
| EZROLLING DUCTILE STEEL | 1800 | -55S625-CDSR | 14.50 | -55R625-CDSR | 13.00 | ROLLER | |||
| EZROLLING DUCTILE STEEL | 1800 | -55S625-CDST | 14.50 | -55R625-CDST | 13.00 | TAPERED BEARING | |||
| V-GROOVE | 1800 | -55S625-VGR | 17.75 | -55R625-VGR | 16.25 | ROLLER | |||
| DUCTILE V-GROOVE | 1800 | -55S625-DVGR | 20.00 | -55R625-DVGR | 18.50 | ROLLER | |||
| DUCTILE V-GROOVE | 1800 | -55S625-DVGT | 20.00 | -55R625-DVGT | 18.50 | TAPERED BEARING | |||
| PHENOLIC | 1600 | -55S625-PHR | 9.75 | -55R625-PHR | 8.75 | ROLLER | |||
| 8 | 2-1/2 | RUBBER ON STEEL | 850 | 10-1/8 | -55S825-RSR | 13.75 | -55R825-RSR | 12.25 | ROLLER |
| RUBBER ON STEEL | 850 | -55S825-RST | 14.75 | -55R825-RST | 13.25 | TAPERED BEARING | |||
| POLYURETHANE/STEEL | 1800 | -55S825-PUR | 15.50 | -55R825-PUR | 14.00 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1800 | -55S825-EZPUR | 17.00 | -55R825-EZPUR | 15.50 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1800 | -55S825-EZPUT | 17.00 | -55R825-EZPUT | 15.50 | TAPERED BEARING | |||
| SEMI STEEL | 1800 | -55S825-SSR | 15.50 | -55R825-SSR | 14.00 | ROLLER | |||
| DUCTILE STEEL | 1800 | -55S825-DSR | 17.50 | -55R825-DSR | 16.00 | ROLLER | |||
| DUCTILE STEEL | 1800 | -55S825-DST | 17.50 | -55R825-DST | 16.00 | TAPERED BEARING | |||
| EZROLLING DUCTILE STEEL | 1800 | -55S825-CDSR | 17.50 | -55R825-CDSR | 16.00 | ROLLER | |||
| EZROLLING DUCTILE STEEL | 1800 | -55S825-CDST | 17.50 | -55R825-CDST | 16.00 | TAPERED BEARING | |||
| V-GROOVE | 1800 | -55S825-VGR | 22.00 | -55R825-VGR | 20.50 | ROLLER | |||
| DUCTILE V-GROOVE | 1800 | -55S825-DVGR | 24.00 | -55R825-DVGR | 22.50 | ROLLER | |||
| DUCTILE V-GROOVE | 1800 | -55S825-DVGT | 24.00 | -55R825-DVGT | 22.50 | TAPERED BEARING | |||
| PHENOLIC | 1800 | -55S825-PHR | 11.25 | -55R825-PHR | 9.75 | ROLLER | |||
| 10 | 2-1/2 | RUBBER ON STEEL | 900 | 11-1/2 | -55S1025-RSR | 16.25 | -55R1025-RSR | 15.00 | ROLLER |
| RUBBER ON STEEL | 900 | -55S1025-RST | 17.50 | -55R1025-RST | 16.00 | TAPERED BEARING | |||
| POLYURETHANE/STEEL | 1800 | -55S1025-PUR | 17.75 | -55R1025-PUR | 16.00 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1800 | -55S1025-EZPUR | 19.00 | -55R1025-EZPUR | 17.50 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1800 | -55S1025-EZPUT | 19.00 | -55R1025-EZPUT | 17.50 | TAPERED BEARING | |||
| SEMI STEEL | 1800 | -55S1025-SSR | 16.75 | -55R1025-SSR | 15.25 | ROLLER | |||
| DUCTILE STEEL | 1800 | -55S1025-DSR | 18.00 | -55R1025-DSR | 16.50 | ROLLER | |||
| DUCTILE STEEL | 1800 | -55S1025-DST | 18.00 | -55R1025-DST | 16.50 | TAPERED BEARING | |||
| EZROLLING DUCTILE STEEL | 1800 | -55S1025-CDSR | 18.00 | -55R1025-CDSR | 16.60 | ROLLER | |||
| PHENOLIC | 1800 | -55S1025-PHR | 13.00 | -55R1025-PHR | 11.75 | ROLLER | |||
| 12 | 2-1/2 | RUBBER ON STEEL | 950 | 13-1/2 | -55S1225-RSR | 21.25 | -55R1225-RSR | 19.50 | ROLLER |
| RUBBER ON STEEL | 950 | -55S1225-RST | 23.00 | -55R1225-RST | 21.50 | TAPERED BEARING | |||
| POLYURETHANE/STEEL | 1800 | -55S1225-PUR | 22.50 | -55R1225-PUR | 21.00 | ROLLER | |||
| EASY ROLLING PU ON STEEL | 1800 | -55S1225-EZPUR | 25.00 | -55R1225-EZPUR | 23.50 | ROLLER | |||
| SEMI STEEL | 1800 | -55S1225-SSR | 24.00 | -55R1225-SSR | 22.50 | ROLLER | |||
| DUCTILE STEEL | 1800 | -55S1225-DSR | 27.00 | -55R1225-DSR | 22.50 | ROLLER | |||
| PHENOLIC | 1800 | -55S1225-PHR | 18.00 | -55R1225-PHR | 16.50 | ROLLER |
For more details, please direct inquiry to us, Thank You !
