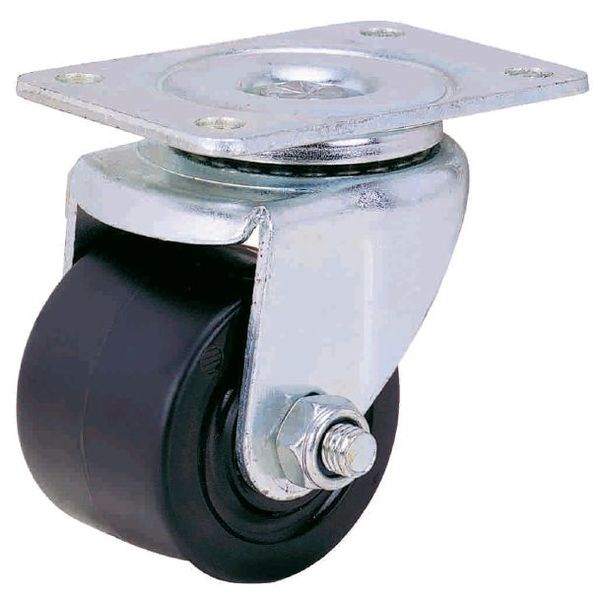

| BUSINESS MACHINE CASTERS | ||
| STANDARD FEATURES | ||
| DOUBLE BALL BEARING RACEWAYS | ||
| FLOOR PROTECTION AND EXCELLENT MOBILITY | ||
| TOP PLATE THICKNESS: 5/32" (STANDARD) | ||
| BRIGHT ZINC FINISH STANDARD | ||
| BLACK PAINTED FINISH AVAILABLE | ||
| SCREW SIDE LOCK BRAKE AVAILABLE | ||
| APPLICATIONS | ||
| PIANOS | ||
| HEAVY EQUIPMENT | ||
| STEM OPTIONS | ||
| TS-THREADED STEM | ||
| GR-GRIP RING | ||
| Diameter | Width | Wheel Material | Capacity(lbs.) | Load Height | Swivel Number | Swivel Weight | Bearing Type |
| 2-1/2 | 1-7/8 | SOFT RUBBER | 530 | 3-5/8 | LF-04S2520-SRS | 1.50 | PLAIN BORE |
| HARD RUBBER | 580 | LF-04S2520-HRS | 1.50 | PLAIN BORE | |||
| HEAVY DUTY PLASTIC | 580 | LF-04S2520-POR | 1.85 | ROLLER | |||
| NYLON | 600 | LF-04S2520-NYR | 1.85 | ROLLER | |||
| NYLON GLASS-FILLED | 630 | LF-04S2520-NGFR | 1.85 | ROLLER | |||
| 3 | 1-7/8 | SOFT RUBBER | 570 | 4 | LF-04S320-SRS | 1.65 | PLAIN BORE |
| HARD RUBBER | 620 | LF-04S320-HRS | 1.65 | PLAIN BORE | |||
| HEAVY DUTY PLASTIC | 620 | LF-04S320-POR | 1.95 | ROLLER | |||
| NYLON | 640 | LF-04S320-NYR | 1.95 | ROLLER | |||
| NYLON GLASS-FILLED | 670 | LF-04S320-NGFR | 1.95 | ROLLER |
