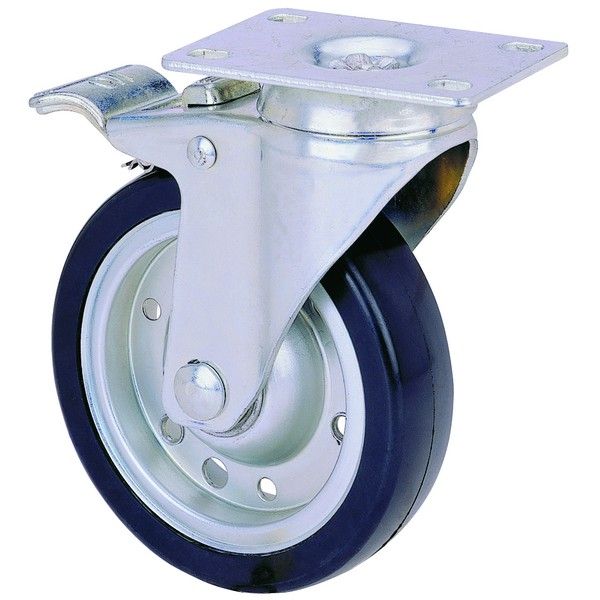

| LIGHT/MEDIUM TOTALOCK CASTERS | ||||
| STANDARD FEATURES | ||||
| TOTALOCK SIMULTANEOUSLY LOCKS THE SWIVEL AND WHEEL | ||||
| MAKING THE UNIT STATIONARY | ||||
| FULLY HEAT TREATED DOUBLE BALL BEARING RACEWAY FOR | ||||
| LONG WEAR AND ADDED STRENGTH | ||||
| APPLICATIONS | ||||
| LIGHT TO MEDIUM DUTY MATERIAL HANDLING | ||||
| BAKERY EQUIPMENT | ||||
| STOCKING CARTS | ||||
| MOVING DOLLIES | ||||
| FOOD SERVICE OPERATIONS | ||||
| EQUIPMENT MAINTENANCE CARTS | ||||
| OFFICE EQUIPMENT | ||||
| COMPUTER ROOM EQUIPMENT | ||||
| LABORATORY EQUIPMENT | ||||
| INSTITUTIonAL EQUIPMENT | ||||
| BEARING OPTIONS | ||||
| S-SLEEVE or PLAIN BEARING | ||||
| R-ROLLER BEARING | ||||
| B-BALL BEARING | ||||
| P-PRECISION | ||||
| D-DELRIN | ||||
| PLATE DIMENSIONS AND BOLT HOLE PATTERN | ||||
| Diameter | Width | Wheel Material | Capacity(lbs.) | Load Height |
Swivel Number | Swivel Weight |
Bearing Type |
| SOFT RUBBER | 175 | LF-TTL20S314-SRS | 1.65 | STEEL SLEEVE | |||
| HARD RUBBER | 275 | LF-TTL20S314-HRS | 1.65 | STEEL SLEEVE | |||
| SOFT RUBBER | 200 | LF-TTL20S314-SRBB | 1.75 | BALL BEARING | |||
| HARD RUBBER | 200 | LF-TTL20S314-HRBB | 1.75 | BALL BEARING | |||
| 3 | 1-1/4 | SOLID POLYURETHANE | 200 | 4-1/8 | LF-TTL20S314-SPUS | 1.65 | STEEL SLEEVE |
| SEMI STEEL | 200 | LF-TTL20S314-SSS | 1.65 | PLAIN BORE | |||
| POLYOLEFIN | 175 | LF-TTL20S314-POS | 1.55 | PLAIN BORE | |||
| PHENOLIC | 200 | LF-TTL20S314-PHS | 1.65 | STEEL SLEEVE | |||
| SOFT RUBBER | 200 | LF-TTL20S3514-SRS | 2.00 | STEEL SLEEVE | |||
| HARD RUBBER | 285 | LF-TTL20S3514-HRS | 2.00 | STEEL SLEEVE | |||
| 3-1/2 | 1-1/4 | SOLID POLYURETHANE | 250 | 4-5/8 | LF-TTL20S3514-SPUS | 1.76 | STEEL SLEEVE |
| RUBBER ON ALUMINUM | 250 | LF-TTL20S3514-RAA | 1.76 | ANNULAR BALL BEARING | |||
| RUBBER ON POLYOLEFIN | 170 | LF-TTL20S3514-TPRB | 1.76 | BALL BEARING | |||
| POLY U/POLYOLEFIN | 250 | LF-TTL20S3514-PPUB | 1.76 | BALL BEARING | |||
| SOFT RUBBER | 200 | LF-TTL20S414-SRS | 1.98 | STEEL SLEEVE | |||
| HARD RUBBER | 300 | LF-TTL20S414-HRS | 1.98 | STEEL SLEEVE | |||
| SOFT RUBBER | 250 | LF-TTL20S414-SRBB | 2.20 | BALL BEARING | |||
| HARD RUBBER | 300 | LF-TTL20S414-HRBB | 2.20 | BALL BEARING | |||
| RUBBER ON ALUMINUM | 250 | LF-TTL20S414-RAA | 1.98 | ANNULAR BALL BEARING | |||
| 4 | 1-1/4 | RUBBER ON POLYOLEFIN | 190 | 5-1/8 | LF-TTL20S414-TPRB | 1.98 | BALL BEARING |
| POLY U/POLYOLEFIN | 300 | LF-TTL20S414-PPUB | 1.98 | BALL BEARING | |||
| SOLID POLYURETHANE | 300 | LF-TTL20S414-SPUS | 1.98 | STEEL SLEEVE | |||
| SEMI STEEL | 300 | LF-TTL20S414-SSS | 2.42 | PLAIN BORE | |||
| POLYOLEFIN | 300 | LF-TTL20S414-POS | 1.32 | PLAIN BORE | |||
| HIGH TEMP PHENOLIC | 300 | LF-TTL20S414-PHS-HT | 1.32 | STEEL SLEEVE | |||
| PHENOLIC | 300 | LF-TTL20S414-PHS | 1.32 | STEEL SLEEVE | |||
| SOFT RUBBER | 250 | LF-TTL20S514-SRS | 2.20 | STEEL SLEEVE | |||
| HARD RUBBER | 300 | LF-TTL20S514-HRS | 2.20 | STEEL SLEEVE | |||
| SOFT RUBBER | 275 | LF-TTL20S514-SRBB | 2.35 | BALL BEARING | |||
| HARD RUBBER | 300 | LF-TTL20S514-HRBB | 2.35 | BALL BEARING | |||
| RUBBER ON ALUMINUM | 275 | LF-TTL20S514-RAA | 2.50 | ANNULAR BALL BEARING | |||
| 5 | 1-1/4 | RUBBER ON POLYOLEFIN | 200 | 6-1/8 | LF-TTL20S514-TPRB | 1.98 | BALL BEARING |
| POLY U/POLYOLEFIN | 300 | LF-TTL20S514-PPUB | 1.98 | BALL BEARING | |||
| SOLID POLYURETHANE | 300 | LF-TTL20S514-SPUS | 2.20 | STEEL SLEEVE | |||
| SEMI STEEL | 300 | LF-TTL20S514-SSS | 3.08 | PLAIN BORE | |||
| POLYOLEFIN | 300 | LF-TTL20S514-POS | 1.76 | PLAIN BORE | |||
| PHENOLIC | 300 | LF-TTL20S514-PHS | 1.98 | STEEL SLEEVE |
