| LIGHT/MEDIUM DUTY CASTERS | ||||
| CAPACITIES TO 300# | ||||
| STANDARD FEATURES | ||||
| FULLY HEAT TREATED DOUBLE BALL BEARING RACEWAY FOR | ||||
| LONG WEAR AND ADDED STRENGTH | ||||
| BRIGHT ZINC PLATED | ||||
| 1/2" PRECISION KING PIN | ||||
| 3/8" DIAMETER AXLE WITH LOCK NUT | ||||
| EConOMICAL AND HIGHLY VERSATILE CASTER SERIES | ||||
| WIDE SELECTION OF WHEELS FOR A WIDE | ||||
| SELECTION OF APPLICATIONS | ||||
| APPLICATIONS | ||||
| LIGHT TO MEDIUM DUTY MATERIAL HANDLING | ||||
| BAKERY EQUIPMENT | ||||
| STOCKING CARTS | ||||
| MOVING DOLLIES | ||||
| FOOD SERVICE OPERATIONS | ||||
| EQUIPMENT MAINTENANCE CARTS | ||||
| OFFICE EQUIPMENT | ||||
| COMPUTER ROOM EQUIPMENT | ||||
| LABORATORY EQUIPMENT | ||||
| INSTITUTIonAL EQUIPMENT | ||||
| TOP LOCK BRAKE(SWIVELS ONLY) | ||||
| DUST COVER | ||||
| BEARING OPTIONS | ||||
| R-ROLLER BEARING | ||||
| S-SLEEVE or PLAIN BEARING | ||||
| D-DELRIN | ||||
| P-PRECISION | ||||
| B-BALL BEARING | ||||
| BRAKE OPTIONS | ||||
| TLB-TOP LOCK BRAKE | ||||
| PLB-POSI LOCK BRAKE | ||||
| SLB-SIDE LOCK BRAKE | ||||
| TTL-TOTAL LOCK BRAKE | ||||
| OPTIonAL TOP PLATE DIMENSIONS | ||||
| AND BOLT HOLE PATTERN | ||||
| Diameter | Width | Wheel Material | Capacity(lbs.) | Load Height |

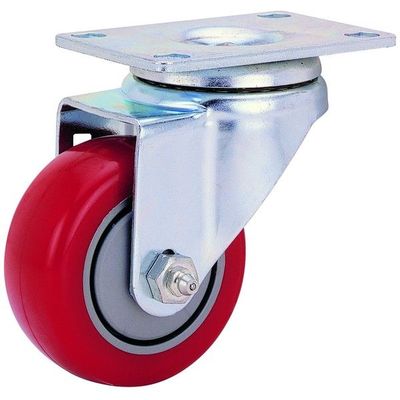

Swivel Number | Swivel Weight |

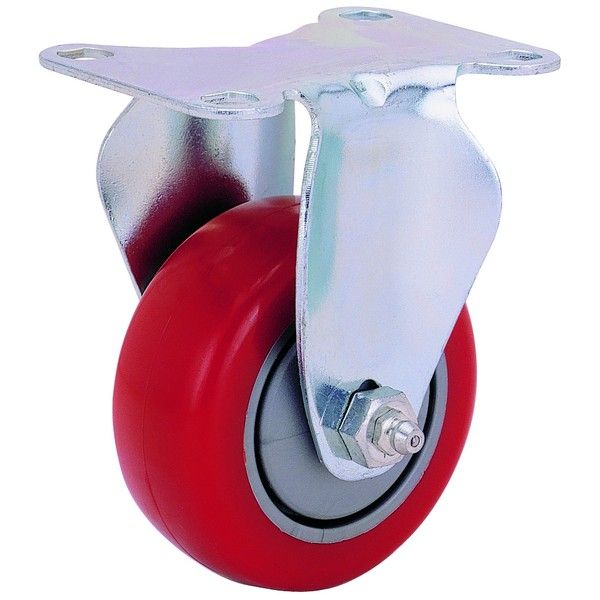

Rigid Number | Rigid Weight |
Bearing Type |
| SOFT RUBBER | 175 | LF-20S314-SRS | 1.60 | LF-20R314-SRS | 1.54 | STEEL SLEEVE | |||
| HARD RUBBER | 275 | LF-20S314-HRS | 1.60 | LF-20R314-HRS | 1.54 | STEEL SLEEVE | |||
| SOFT RUBBER | 200 | LF-20S314-SRBB | 1.70 | LF-20R314-SRBB | 1.70 | BALL BEARING | |||
| HARD RUBBER | 200 | LF-20S314-HRBB | 1.70 | LF-20R314-HRBB | 1.70 | BALL BEARING | |||
| 3 | 1-1/4 | SOLID POLYURETHANE | 200 | 4-1/8 | LF-20S314-SPUS | 1.60 | LF-20R314-SPUS | 1.54 | STEEL SLEEVE |
| SEMI STEEL | 200 | LF-20S314-SSS | 1.60 | LF-20R314-SSS | 1.54 | PLAIN BORE | |||
| POLYOLEFIN | 175 | LF-20S314-POS | 1.50 | LF-20R314-POS | 1.30 | PLAIN BORE | |||
| PHENOLIC | 200 | LF-20S314-PHS | 1.60 | LF-20R314-PHS | 1.54 | STEEL SLEEVE | |||
| SOFT RUBBER | 200 | LF-20S3514-SRS | 2.00 | LF-20R3514-SRS | 1.90 | STEEL SLEEVE | |||
| HARD RUBBER | 285 | LF-20S3514-HRS | 2.00 | LF-20R3514-HRS | 1.90 | STEEL SLEEVE | |||
| 3-1/2 | 1-1/4 | SOLID POLYURETHANE | 250 | 4-5/8 | LF-20S3514-SPUS | 1.76 | LF-20R3514-SPUS | 1.54 | STEEL SLEEVE |
| RUBBER ON ALUMINUM | 250 | LF-20S3514-RAA | 1.76 | LF-20R3514-RAA | 1.54 | ANNULAR BALL BEARING | |||
| RUBBER ON POLYOLEFIN | 170 | LF-20S3514-TPRB | 1.76 | LF-20R3514-TPRB | 1.54 | BALL BEARING | |||
| POLY U/POLYOLEFIN | 250 | LF-20S3514-PPUB | 1.76 | LF-20R3514-PPUB | 1.54 | BALL BEARING | |||
| SOFT RUBBER | 200 | LF-20S414-SRS | 1.98 | LF-20R414-SRS | 1.76 | STEEL SLEEVE | |||
| HARD RUBBER | 300 | LF-20S414-HRS | 1.98 | LF-20R414-HRS | 1.76 | STEEL SLEEVE | |||
| SOFT RUBBER | 250 | LF-20S414-SRBB | 2.20 | LF-20R414-SRBB | 1.90 | BALL BEARING | |||
| HARD RUBBER | 300 | LF-20S414-HRBB | 2.20 | LF-20R414-HRBB | 1.90 | BALL BEARING | |||
| RUBBER ON ALUMINUM | 250 | LF-20S414-RAA | 1.98 | LF-20R414-RAA | 1.76 | ANNULAR BALL BEARING | |||
| 4 | 1-1/4 | RUBBER ON POLYOLEFIN | 190 | 5-1/8 | LF-20S414-TPRB | 1.98 | LF-20R414-TPRB | 1.76 | BALL BEARING |
| POLY U/POLYOLEFIN | 300 | LF-20S414-PPUB | 1.98 | LF-20R414-PPUB | 1.76 | BALL BEARING | |||
| SOLID POLYURETHANE | 300 | LF-20S414-SPUS | 1.98 | LF-20R414-SPUS | 1.76 | STEEL SLEEVE | |||
| SEMI STEEL | 300 | LF-20S414-SSS | 2.42 | LF-20R414-SSS | 2.20 | PLAIN BORE | |||
| POLYOLEFIN | 300 | LF-20S414-POS | 1.32 | LF-20R414-POS | 1.10 | PLAIN BORE | |||
| HIGH TEMP PHENOLIC | 300 | LF-20S414-PHS-HT | 1.32 | LF-20R414-PHS-HT | 1.10 | STEEL SLEEVE | |||
| PHENOLIC | 300 | LF-20S414-PHS | 1.32 | LF-20R414-PHS | 1.10 | STEEL SLEEVE | |||
| SOFT RUBBER | 250 | LF-20S514-SRS | 2.20 | LF-20R514-SRS | 1.98 | STEEL SLEEVE | |||
| HARD RUBBER | 300 | LF-20S514-HRS | 2.20 | LF-20R514-HRS | 1.98 | STEEL SLEEVE | |||
| SOFT RUBBER | 275 | LF-20S514-SRBB | 2.35 | LF-20R514-SRBB | 2.05 | BALL BEARING | |||
| HARD RUBBER | 300 | LF-20S514-HRBB | 2.35 | LF-20R514-HRBB | 2.05 | BALL BEARING | |||
| RUBBER ON ALUMINUM | 275 | LF-20S514-RAA | 2.50 | LF-20R514-RAA | 2.20 | ANNULAR BALL BEARING | |||
| 5 | 1-1/4 | RUBBER ON POLYOLEFIN | 200 | 6-1/8 | LF-20S514-TPRB | 1.98 | LF-20R514-TPRB | 1.76 | BALL BEARING |
| POLY U/POLYOLEFIN | 300 | LF-20S514-PPUB | 1.98 | LF-20R514-PPUB | 1.76 | BALL BEARING | |||
| SOLID POLYURETHANE | 300 | LF-20S514-SPUS | 2.20 | LF-20R514-SPUS | 1.98 | STEEL SLEEVE | |||
| SEMI STEEL | 300 | LF-20S514-SSS | 3.08 | LF-20R514-SSS | 2.86 | PLAIN BORE | |||
| POLYOLEFIN | 300 | LF-20S514-POS | 1.76 | LF-20R514-POS | 1.54 | PLAIN BORE | |||
| PHENOLIC | 300 | LF-20S514-PHS | 1.98 | LF-20R514-PHS | 1.76 | STEEL SLEEVE |
