| STANDARD FEATURES | ||||||
| ALL NYLON CONSTRUCTION; DIE CAST ZINC ALSO AVAILABLE | ||||||
| STEEL AXLE AND FASTENING | ||||||
| BRAKE OPTION IS AVAILABLE ON ALL MODELS | ||||||
| URETHANE TREAD AVAILABLE (PPUS) | ||||||
| RUBBER TREAD AVAILABLE (TPRS) | ||||||
| APPLICATIONS | ||||||
| FURNITURE | ||||||
| DISPLAY UNITS | ||||||
| MEDICAL EQUIPMENT | ||||||
| UTILITY CARTS | ||||||
| OFFICE EQUIPMENT | ||||||
| FINISH OPTIONS | ||||||
| BRIGHT BRASS (BB) | ||||||
| BRIGHT CHROME (BC) | ||||||
| WINDOR ANTIQUE (WA) | ||||||
| SATTIN CHROME (SC) | ||||||
| FLAT BLACK (FB) | ||||||
| STEM OPTIONS | ||||||

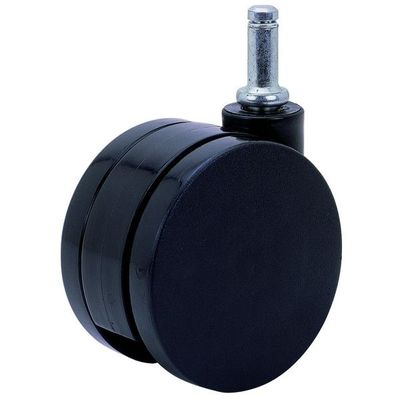

| GR-GRIP RING | ||||||

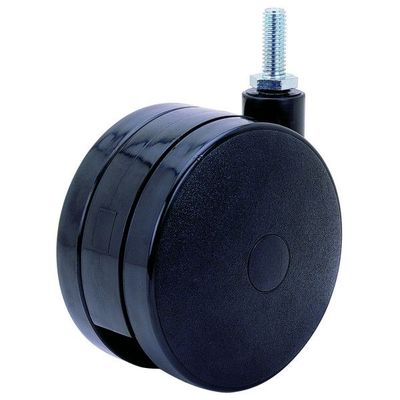

| TS-THREADED STEM | ||||||
| GN-GRIP NECK | ||||||

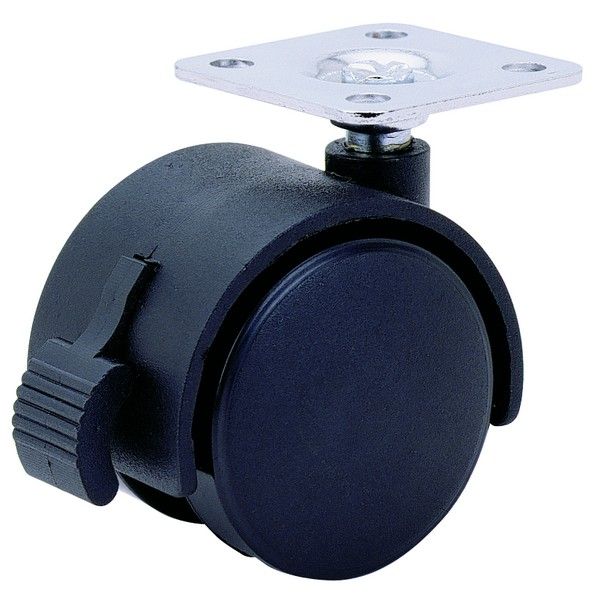

| P-PLATE | ||||||
| Diameter | Wheel Material | Capacity(lbs.) | Load Height | Swivel Number | Swivel Weight |
Bearing Type |
| 30mm | BLACK NYLON | 30 | 1-7/16 | LF-02S30GR-NYS | 0.12 | PLAIN BORE |
| 40mm | BLACK NYLON | 40 | 2 | LF-02S40GR-NYS | 0.20 | PLAIN BORE |
| 50mm | BLACK NYLON | 75 | 2-7/16 | LF-02S50P-NYS | 0.24 | PLAIN BORE |
| 60mm | BLACK NYLON | 100 | 2-3/4 | LF-02S60GR-NYS | 0.30 | PLAIN BORE |
| 75mm | BLACK NYLON | 170 | 3-3/16 | LF-02S75GR-NYS | 0.40 | PLAIN BORE |
| 100mm | BLACK NYLON | 200 | 4-3/16 | LF-02S100TS-NYS | 0.60 | PLAIN BORE |
| 125mm | BLACK NYLON | 225 | 5-7/16 | LF-02S125GR-NYS | 0.75 | PLAIN BORE |
