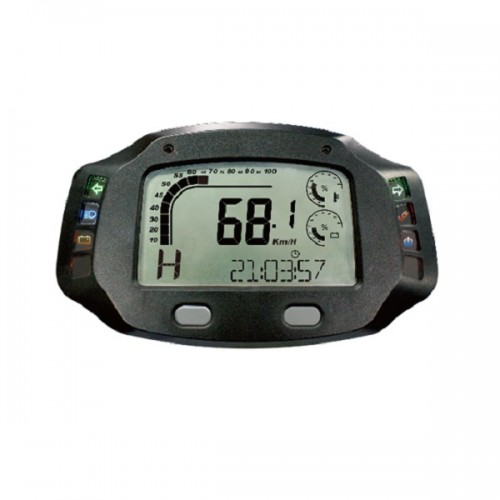

ACE-7000EC (CANBUS) Series Speedometer for EV/LEV, Digital LCD Display

Digital LCD Display for Multi-function EV/LEV Speedometer

Digital LCD display, for digital system (CANBUS), Bar-graphic for temp. and volt meter or SOC of battery.

Key Features:

• Multi-functional LCD electric Bike/Vehicle computers indicate bar-graphic SOC and bar-temperature meter, Speedometers, assistance ratio or moving status, and one of other functions simultaneously.
• Built-in CAN Bus V2.0A or V2.0B protocol.
• The 2nd row of LCD indicates message from controller or battery.
• Main Bar-graphic can be displayed for either speedometer
  or SOC.
• Assistance ratio or moving status display is available.
• Computers built-in 6 to 10 LED indicators for different purpose indicators.
• Odometer and total running timer are stored in memory, even when the power is off.
• Built-in backlight will be turned on when light is switched on.
• Metric/Empire unit option available.
• Excellent water resistance, with anti-vibration structure and noise immunity design

Specification:

• Dimension: 170.0 mm x 100.5 mm x 30.0mm
• Certificate: E mark, CE
• Waterproof: IP X7
• Color: BK
