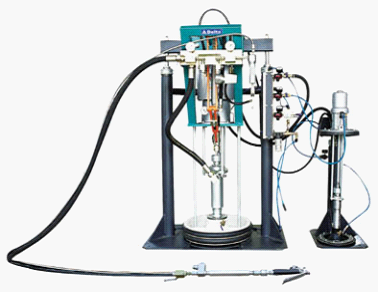

ST02 Two Component Sealant Extruder


Brand: SAINT BEST
model: ST02
Specifications: ST02
Price: N/A
Min quantity: 1 Set
Quantity: 30 Set
Deliver: In 15 days
Area: China
Expiry: Long-term
Edit time: 2012-09-25 11:53
Hits: 735

Company
Detail

 Our two component extruder machine is widely used to mix silicone, polysulfide and polyurethane sealants at an accurate rate well-proportioned and apply the sealant with high speed, which saves the sealant and increases the efficiency compared to manual application.

Features:

1 ST02 adopts the world-famous brand – GRACO in USA.

2 It is motivated by pneumatic power.

3 The hydraulic pressure system for the hardener has two filtering devices, which increase the uniformity and hardening.

4 The valves of the basic component pump, hardener pump and proportioning pump are made of special alloy with no leakage.

5 The mixing system adopts static reciprocating mixing machine with imported mandrill.

◇Parameters

1. Mixing Ratio61——141

2. Basic Component Bucket55 Gallon200L

3. Hardener Bucket5 Gallon20L

4. Max Air Consumption0.8m3/min

5. Sealant Air Pressure Rate501

6. Max Squeezing Pressure29Mpa

7. Air Pressure0.5——0.8Mpa

8. Outside Dimension1100×950×1630

9. Weight650kg

◇Key Parts

No.

Key Parts

Manufacturer

1

Main Motor

GRACO

USA

2

Assistant Motor

GRACO

USA

3

Pneumatic Elements

AIRTAC

TAIWAN

4

Hose

FEIYU

SHENYANG CHINA
