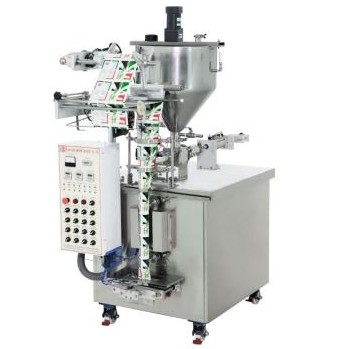

Auto high concentration packing machine-ARF

Approval / Certification
CE, ISO 9002


1.     The machine applies to pack high concentrate, low viscosity liquid products. High temperature liquid is available to fill up.
2.     Operate with automatic measuring, filling, sealing and cut-off. With electronic eye sensor can perform accurate alignment and pitch of package.
3.     The outer structure of machine is shielded with SUS304 stainless steel, hygienic and clean.
4.     It can be equipped with date coder to print date and batch number on packing foil.
APPLICATIONS :
Curry past, Meat sauce, Ketchup, Chili sauce, etc.
SPECIFICATIONS :


Model

ARF-1

ARF-2

Capacity (Bag/Min)

15~20

20~30

Weighing Range

10~100g

100~500g

Electric Power

AC 220V

3 phase 2HP

AC 220V

3 phase 2HP

Dimensions
L x W x H (m/m)

900x700x1900

1000x800x1900

Air Compressor

2HP

3HP

* Air compressor is not included
