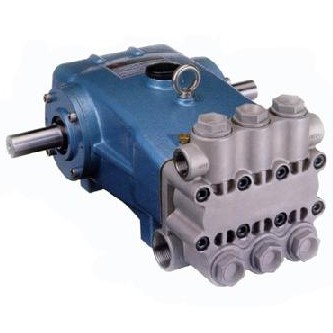

Industrial high pressure pump
 Enlarge image
model: MDC-45/120
Price: Negotiable
Min.Order: N/A
Supply Amount: N/A
Delivery: Shipment within days since the date of payment
Place of origin: Taiwan Taichung City
Valid until: Never Expire
Updated on: 2011-12-23 14:50
Area: Taiwan Taichung City
Enquiry

Details
Flow rate: 45.4 L/min (11.9 GPM)
Pressure: 125 Bar (1775 PSI)
RPM: 800
Inlet port: 1-1/4" NPT / PT
Outlet port: 3/4" NPT / PT
HP required: 15 HP
Dimension: 433 x 375 x 205 mm (17 x 14.8 x 8.1 inches)
Weight: 30 kg (66 lbs.)
SUS316 stainless steel manifold
Ceramic plungers
Stainless steel valves
PTFE seals
SCM alloy steel crankshaft
