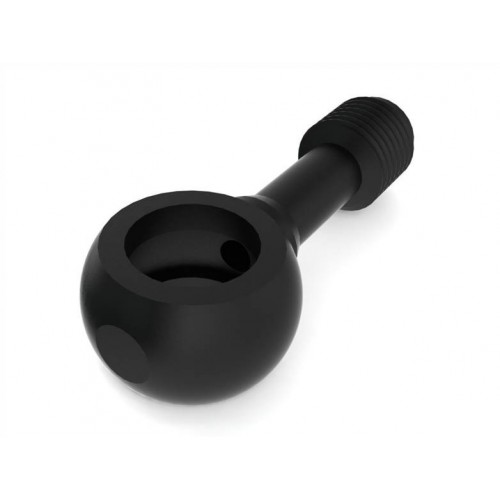

Model:1000 Series
Deliver:In 30 days
Inquiry
Description
Material
Steel
Hole Diameter
10mm / 11mm
Surface Treatment
Chrome, Electric Black, etc.
*There may be deviations in the color of the photo, please refer to the received entity.
Dimension
| Part No. |
Hole Diameter (mm) |
Thread | Angle |
| 2000A-1000__01 | 10 | UNF 3/8"-24 | Straight |
| 2000A-1015__01 | 10 | UNF 3/8"-24 | 15° |
| 2000A-1020__01 | 10 | UNF 3/8"-24 | 20° |
| 2000A-1030__01 | 10 | UNF 3/8"-24 | 30° |
| 2000A-1045__01 | 10 | UNF 3/8"-24 | 45° |
| 2000A-1060__01 | 10 | UNF 3/8"-24 | 60° |
| 2000A-1090__01 | 10 | UNF 3/8"-24 | 90° |
| 2000A-1100__01 | 11 | UNF 3/8"-24 | Straight |
| 2000A-1145__01 | 11 | UNF 3/8"-24 | 45° |
| 2000A-1190__01 | 11 | UNF 3/8"-24 | 90° |
| 2000A-1200__01 | 12 | UNF 3/8"-24 | Straight |
| 2000A-1215__01 | 12 | UNF 3/8"-24 | 15° |
| 2000A-1230__01 | 12 | UNF 3/8"-24 | 30° |
| 2000A-1245__01 | 12 | UNF 3/8"-24 | 45° |
| 2000A-1260__01 | 12 | UNF 3/8"-24 | 60° |
| 2000A-1290__01 | 12 | UNF 3/8"-24 | 90° |
|
If You Cannot Find The Type You Need Please Feel Free to Contact Us From The Form Below! |
|||
