Key Features:
-

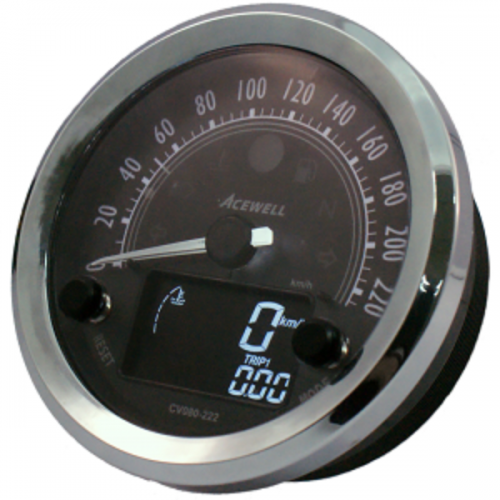

Needle tachometer or speedometer, integrated digital functions, 7 LED indicators and 7 LCD indicators.
- Negative VA LCD displays digital functions of speedometer, tachometer, maximum RPM and SPD, average speed, trip meter 1/2 or 3, odometer, riding time, total riding time, total hour meter, volt meter, temperature meter, clock, bar-fuel and temperature gauge.
- 5 level backlight brightness can be manual adjust from 5, 6, 7, 8, 9.
- Gear indicator which calculates gear by comparing speed and RPM.
- Fuel gauge full and empty resistances are fully adjustable to be compatible with most fuel senders. Fuel gauge can be disabled if not required.
- Allows end user to adjust odometer when the odometer is less than 30km / 18.6 miles
- Odometer and total riding time are stored in memory, even when the power is off.
- Universal wheel circumference setting range from 1 to 3,999mm.
- Includes bracket, RPM sensing wire, hall or reed speed sensor, fitting kits, wiring harnessand temperature sensor.
-
Excellent water resistant, anti-vibration structure and noise immunity design.
Specification:
- Dimension: ∅80mm x 51.5mm
- Certificate: E-mark, CE, TS16949
- Waterproof: IP X7
- Color: Panel Black/White, Upper case Chrome/Anodizing/Plating
