Brand:KRONYO
Model:TCAR-68
Inquiry
Tire Repair Kit for Car & Moto
Card packing/ sets
Specification:
Co2 cylinder 16g/ 2pcs
Co2 cylinder cover/ 1pc
Rubber Solution 7ml/ 1pc
T-handle tire plug tool/ 1pc
T-handle screw drill/ 1pc
Tire seal 10cm x 5strips (4″)/ 1pc
Co2 connection pipe/ 1pc
Plastic adapter/ 1pc
Packing:
12 cards/ Inner box
6 inner boxes/ CTN.
CUFT: 2.6’
N.W.: 17kgs
G.W.: 18kgs

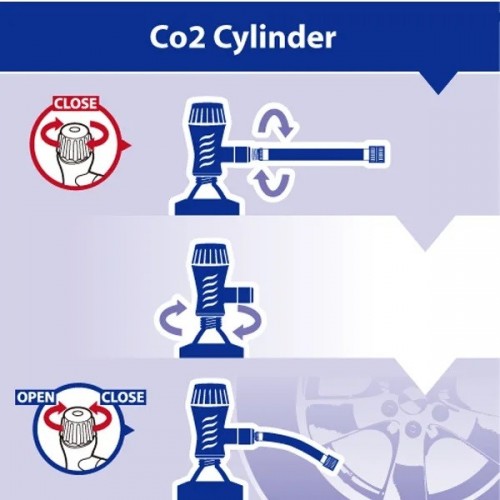

| 1. | Before set up, make sure the switch is in the “closed” position, place the adapter on the inflator. |
| 2. | Smaller hole attach CO2 at the bottom in clockwise direction. |
| 3. | Attach the pipe to the tire and turn the inflator clockwise to insert air into tires with CO2 cylinder. |

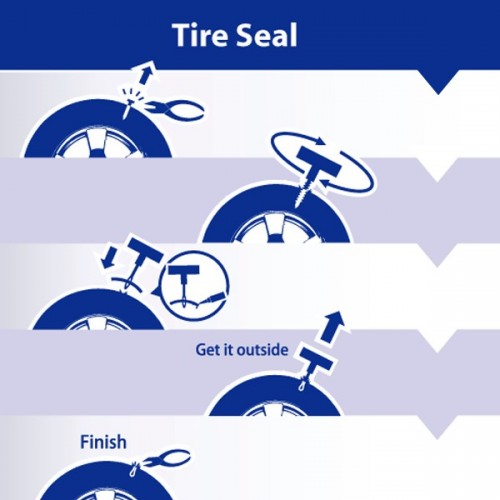

| 1. | Pull out the nail from tire. |
| 2. | Clean the ingury with the open end insrting tool.Following the direction of the injury and twist . |
| 3. | Times in hole inside. |
| 4. | Feed the seal string to open end inserting tool. Also using a little of solution on the surface of seal string. |
| 5. | Insert the tool by hand into injury through the tire from outside to inside about 1 cm. Then twist it. |
| Put out the tool diresctly. |
