Brand:KRONYO
Model:TBIC-03
Inquiry
Tire Repair Kit for Bike
Box packing/ boxes
Specification:
Co2 cylinder 12g/ 1pc
Co2 connection pipe/ 1pc
Rubber solution 7ml/ 1pc
metal rasp/ 1pc
Sand paper/ 1pc
Cold patch Dia. 19mm/ 2pcs
Cold patch 34 x 24mm/ 2pcs
Mini screw drill/ 1pc
Mini tire plug tool/ 1pc
Tire seal 10cm x 10strips (4”)/ 1pc
PP plastic box/ 1pc
Packing:
8 boxes/ color box
12 color boxes/ CTN.
CUFT: 0.9’
N.W.: 15.1kgs
G.W.: 16.1kgs
| 1. | Connect the tire & pipe. |
| 2. | Prick & fasten the valve directly. |
| 1. | Pull out the nail from tire. |
| 2. | Clean the injury with the open end inserting tool.Following the direction of the injury and twist. |
| 3. | Times in hole inside. |
| 4. | Feed the seal string to open end inserting tool. Also using a little of solution on the surface of seal string. |
| 5. | Insert the tool by hand into injury through the tire from outside to inside about 1 cm. Then twist it. |
| Put out the tool directly. |

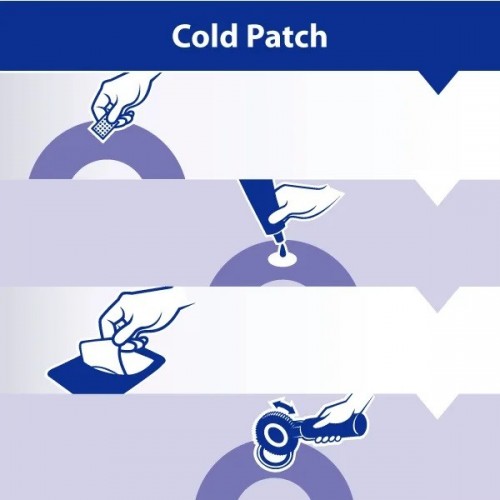

| 1. | Rub off the part to be mended larger then the patch in size. |
| 2. | Apply slight rubber solution to the part to be mended. |
| 3. | Slowly take off the foil. |
|
4. |
When the rubber solution dries, paste the patch on the part to be mended and fixthe patch with a roller stitch. |
