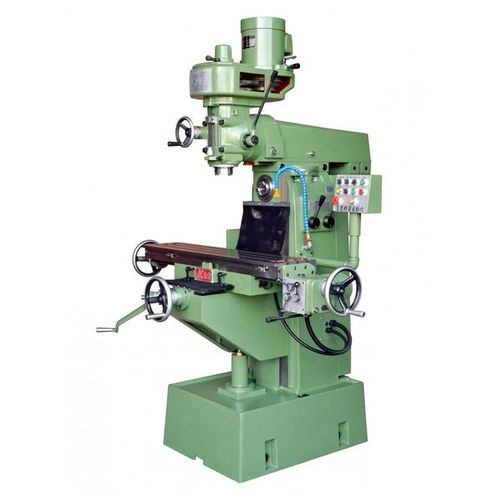

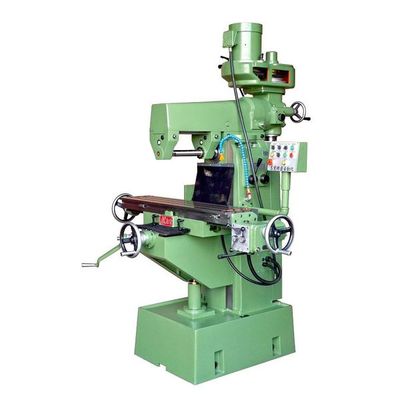

Models (CF-G1A) |
||
|
Table |
||
|
Working surface(length × width) |
1000×230mm |
|
|
Table travel(x/y/z) |
580×230×385mm |
|
|
T-slots |
16mm×3 |
|
|
Vertical Spindle |
||
|
Spindle nose |
N.T.#40 |
|
|
Spindle speed(8 steps)R.P.M |
210,420,690,980,1380,1720,1960,3440(60Hz) |
|
|
170,340,570,810,1140,1430,1620,2860(50Hz) |
||
|
Distance from spindle end to table top |
50-525mm |
|
|
Distance from spindle center to column |
150-450mm |
|
|
Vertical travel of quill surface |
125mm |
|
|
Swiveling angle of head(right & left) |
90 |
|
|
Cross travel of ram |
230mm |
|
|
Horizontal rotation angle or ram |
360 |
|
|
Horizontal Spindle |
||
|
Spindle nose |
N.T.#40 |
|
|
Spindle speed(6 steps)R.P.M |
50,120,210,320,470,1180(60Hz) |
|
|
40,100,170,260,390,980(50Hz) |
||
|
Distance from spindle center to table top |
0-470mm |
|
|
Distance from spindle center to ram bottom |
115mm |
|
|
Motors |
||
|
For vertical spindle |
1.5KW(2HP)-4/8P |
|
|
For Horizontal spindle |
1.5KW(2HP)-4P |
|
|
|
||
|
For cutting fluid pump |
0.1KW(1/8HP)-4P |
|
|
Size of machine |
||
|
Net weight |
1,200kg |
|
|
Dimensions of packing case |
1150×1205×1700mm |
|
