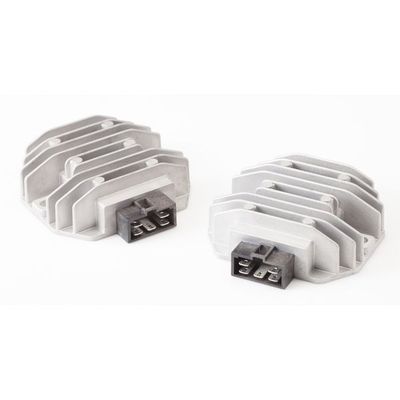

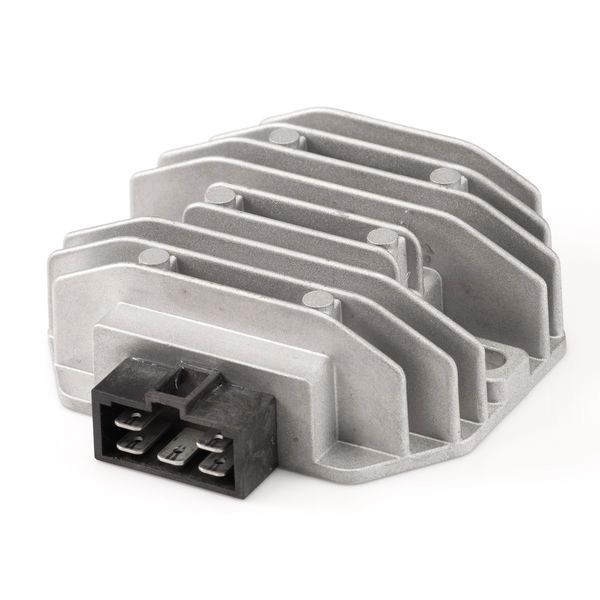

Rectifier Regulator R300


Brand: Eltronix
Model: R300

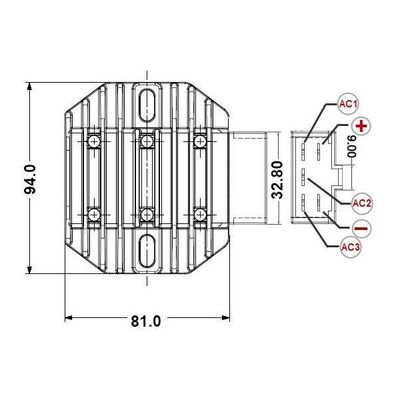

Specifications: L:9.4cm x W:9.4cm x H:3cm
Price: 35.00 USD/PCS
Min quantity: 1000 PCS
Quantity: 30000 PCS
Deliver: In 45 days
Area: Taiwan Hsinchu City
Expiry: Long-term
Edit time: 2024-02-29 17:02
Hits: 636

Company
Detail
Integrating the solutions of high-performance ASIC (Application Specific Integrated Circuit), high power MOSFETs(metal Oxide Semiconductor Field Effect Transistor), and variable frequency control technology, R2Power achieve the high output voltage stability in low speed(RPM).It can not only reduce the dependence of battery, but also extend the battery life. And while reducing heat dissipation of power devices, we also enhanced the stability and reliability of product .It’s an excellent characteristic that should be highlighted, in particular, for the high power demand.

Basic Specifications:
◆weight: 240g
◆Regulate Voltage : 14.5 V0.3 V
◆ Absolute Maximum Current :
- Model R300:20A
- Model R500:30A
- Model R800:50A
◆ Operation Temperature : -10~+80゚C
◆ Storage Temperature : -20~+80゚C
◆ Total Reverse Leak Current < 0.05 mA/20V
◆ Diode Forward Voltage : < 0.77V
◆ Input Frequency: < 2.8KHz

Key Features
◆ High Output Power.(Than traditional can improve at least 20W/10A.)
◆ Low/No Battery Operation.
◆ High Efficiency, Cool Operation..
◆ Zero Standby Current, Auto Operating.
◆ Zero Defect solution, High Reliability.
◆ Thermal compensation, precise Voltage.
