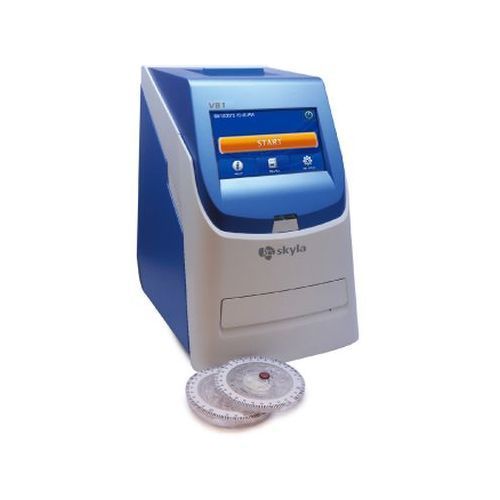

Veterinary Clinical Chemistry Analyzer
 Enlarge image
Model: skyla VB1
Price: Negotiable
Min.Order: N/A
Supply Amount: N/A
Delivery: Shipment within 30 days since the date of payment
Place of origin: Taiwan Hsinchu City
Valid until: Never Expire
Updated on: 2014-12-02 13:15
Area: Taiwan Hsinchu City
Enquiry

Details
Principle
Photometric System :
LEDs 340nm~940nm wavelength
Samples & Reagent
Reagent :
Both panel discs and single assay cartridges are available
One-Time-Use, self-contained reagent in dry form
Wet chemistry reaction with built-in QC and calibration
Panel Disc :
Whole blood (PCV<63%), plasma or serum 200 uL
Up to 15 assays in a disc
Single Assay Cartridge: Plasma or serum  50 uL
One or two assays in a cartridge, up to 3 cartridges for one test
System Design
User Interface :
Touch screen 5 inch Color LCD
Internal Memory :
Store up to 50,000 analysis results
Printer :
Build in Thermal printer ,  External USB Printer
Rear Panel Sockets :
USB type A (Host) ; RS232 serial port ; RJ45 (LAN ready)
Working Condition
Analyzing Time :
Less than 15min
Operating Condition :
10~32℃ Temperature , 5%~95% Humidity
Power Supply :
Specified AC adaptor, 100~240V, 50/60Hz, Rating 1.4A
Dimension & Weight :
300mm(H)x223mm(W)x285mm(D) ; 5.5Kg
Total Available Parameters :   (# calculated,  * Developing)
ALB
ALP
ALT
AST
AMY
BUN
CREA
GLU
TBIL
GGT
Na
K
Cl
Ca
PHOS
TP CPK LDH* TC TG
Mg* LIPA* T4* TBA* NH3*
CRP*
GLOB# ALB/GLOB#
 Na/K#
BUN/CREA#
