- Battery Ultra light(1.2kgs) / Envirofriendly LiFePO4 battery unit can be quickly and easily removed for convenient charging at home. With shorter charging time(25mins-2.5 hrs) and much longer travel range(up to 80KM with assist power)
-
Actuator
The APT world patented power assist actuator provides instant power feed back for a smoother and easy ride under all speed.
-
Programmable Controller
10 stage self adjustable and programmable controller, qualified for ISO, CE and Medical regulation
|

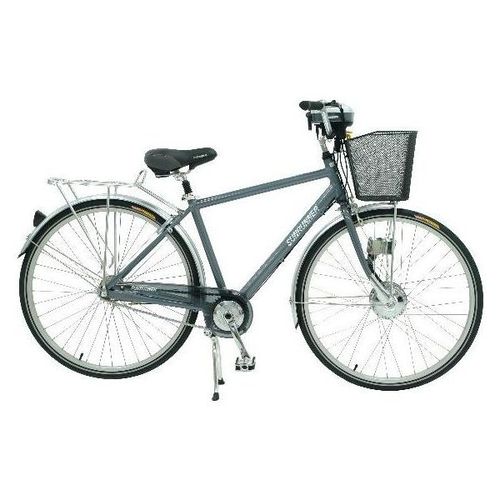

- MODEL--SB-28M
- BATTERY CAPACITY--OPTIonAL 3 Ah/4 Ah/5 Ah
- ON THE FLAT GROUND WITHOUT WIND, THE OUTPUT ASSIST FROM THE ConTROLLER CAN BE ADJUSTED FROM 1-10 SCALE
- Set to the 1st scale of power assist--3Ah-60Kg/47Km 5Ah--60Kg/83Km
- Set to the top scale of power assist--3Ah-60Kg/31Km 5Ah--60Kg/55Km
- DRIVING MOTOR-Front wheel drive/Rear wheel drive OPTIONAL
- TYPE OF MOTOR--Brush with reduction gear (24 V) / Brushless with reduction gear (24 V) OPTIONAL
- CHARGING TIME--based on the output of the charger (2A / 4A / 6A), the unit will be fully charged within 25 min.~2.5 hrs.
|
