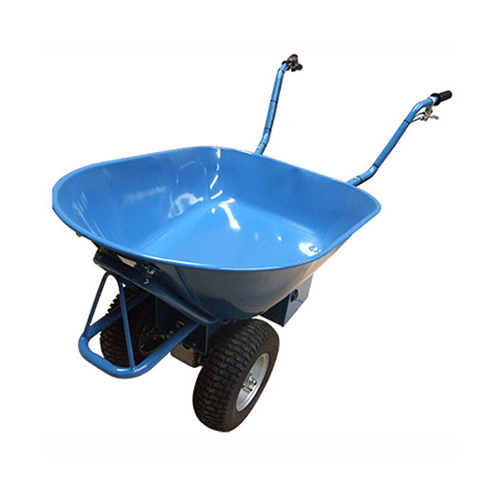

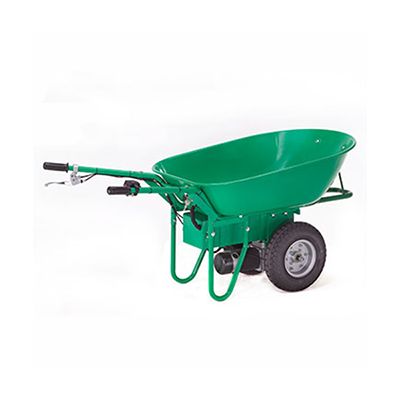

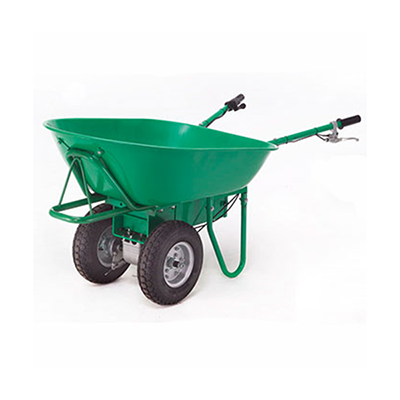

Electric Wheel Barrow EWB-250 / 600

Enlarge image
Model: EWB-250 / 600
Price: Negotiable
Min.Order: N/A
Supply
Amount:
N/A
Delivery: Shipment within 60 days since the date of payment
Place of origin: Taiwan
Valid until: Never Expire
Updated on: 2017-02-24 11:56
Hits: 1546
Area: Taiwan Taichung City
Enquiry
Company Details
  • Ren Jieh Co., Ltd.(Group) 仁捷有限公司
  •  Authenticate Authenticate Authenticate Authenticate Authenticate Validated [Credit]
  • Contact: Michael() General Manager
  • Member: chat  add-partner send-message
  • E-mail: rj-moving@umail.hinet.net
  • Tel: +886-4-22062352
  • Country: Taiwan-Taichung City
  • Address: No.121, Ji Hsing St., West Dist., Taichung City, Taiwan


Details
Suits the use to the farm, the factory, the path sweeps clear the transportation, when and any place, needs to ship the goods, all may use Electric the Barrow transportation:The transporting goods use, does not need to take the trouble, can the clear loose load bearing Below260kg any goods transportation.

Use way: Manual, electrically operated all may cut and the advance and the backlash all may use electric barrow.

We design and manufacture professional Electric Wheel Barrow Factory
We are Electric Wheel Barrow Leader.
Model No: EWB-250( two wheel) EWB-600( two wheel)
Power System Electrical Control System
Bucket Size L 83 X W 57 x H 25 CM
Motor Power (DC Motor) 24V / 250W Motor
impetus differential gear
mechanism drive
DC 24V / 600W Motor
impetus differential gear
mechanism drive
Battery [Sealed Lead-Acid] 2 x (24V / 18AH) 2 x (24V / 26AH)
Charger AC 100-230V,Output:DC 4A AC 100-230V,Output:DC 4A
Charge Life: 200~250 cycles
Use Hour per Charge 3 Hours
Max. Speed 2-5km / hr (Advance and reverse)
Acceleration Hall Throttle with PWM Variable Speed
(May adjust speed quick and is slow)
Transmission Differential Gear mechanism Drive
Product Combination Method: Simple DIY Combination
Two Wheel 13" Rubber Air Tire
Max. Load Capacity 100 Kgs 260 Kgs
Color Available Black ,Yellow , Red , Green.
Packing
[CTN/N.W./G.W./CUFT]
NW:60 Kg / GW:65kg
15.5'
NW:60KG/ GW;65KG
16.4'
Brake 1 Drum Brake 2 Drum Brakes
Carton Dimension Big Barrow
20' CY Loading Q'ty: Big Barrow : 100 sets
40' CY Loading Q'ty: Big Barrow : 200 sets
Origin of Country: Made in Taiwan
  PATENT
