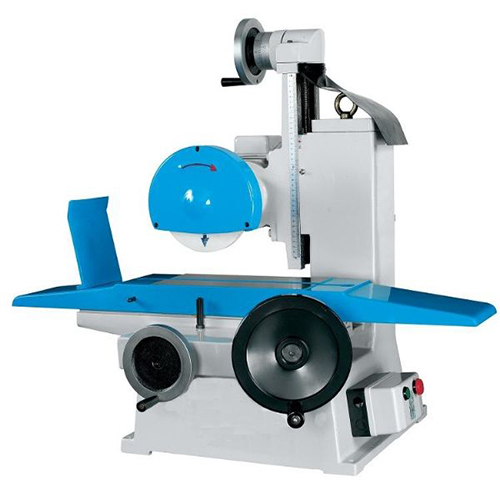

Surface grinding machine 612B

Enlarge image
Brand: LIAN JENG CORPORATIO
model: CF-612B/BC
Price: Negotiable
Min.Order: N/A
Supply
Amount:
N/A
Delivery: Shipment within 30 days since the date of payment
Place of origin: Taiwan
Valid until: Never Expire
Updated on: 2017-05-16 14:05
Hits: 897
Area: Taiwan Taichung City
Enquiry
Company Details
  • Lian-Jeng Corporation
  •  Authenticate [Credit]
  • Contact: Alvin()
  • Member: chat  Skype  add-partner send-message
  • E-mail: sales@lianjeng.com
  • Tel: 886-4-25625559
  • Country: Taiwan-Taichung City
  • Address: No. 168, Guangqi Rd. , Shengang Dist.


Details
Wechat: AlvinChen717


Models (CF-612B)
Table
Table size 152×305mm
Max.grinding length 320mm
max.grinding width 170mm
Distace from table surface to spindle center 280mm
Wheel size(dea×width×bore) 178×12.7×31.7mm
Spindle speed(50/60Hz) 2800/3600rpm
Spindle motor 0.75HP
T-slot 12.7×19.5×398mm
Vertical feed handwheel per gra. 0.01mm
Cross feed handwheel per gra 0.02mm
Coolant pump motor --
Floor space 430×440mm
Net weight 210kgs
Gross Weight 260kgs
Packing dimensions 1040×730×950

Standard Accessories

Steel floor stand (612BC only)

Coolant system (612BC only)

Splash guard (612BC only)

Hand operated lubricator (612BC only)

Grinding wheel, wheel flange, wheel guard

Tool kit

Optional Accessories

Permanent chuck

Diamond dresser

Balancing stand

Hand operated lubricator (for 612B)

Steel floor stand (for 612B)
